Seat Depth Adjuster Heating Element, Removing And Installing: Removing

The old seat heating element remains on the cushion and will be covered by the new heating element.

-- Remove the seat depth adjuster cushion. Refer to SEAT DEPTH ADJUSTER CUSHION, REMOVING AND INSTALLING .

-- Cut the wire directly on the old heating element.

Courtesy of AUDI OF AMERICA, LLC

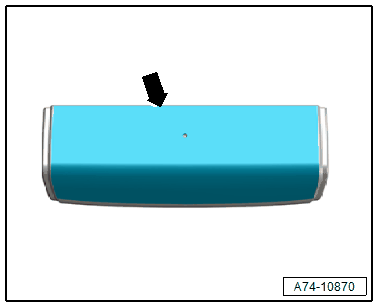

-- Align the new heating element -arrow- on the cushion.

-- Peel the protective film off the heating element. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
