Seat Depth Adjuster Cushion, Removing And Installing: Removing

-- Move the front seat all the way to the rear in its highest position.

-- Equipped on some models: remove the fire extinguisher from the mount.

-- Move seat depth adjuster forward.

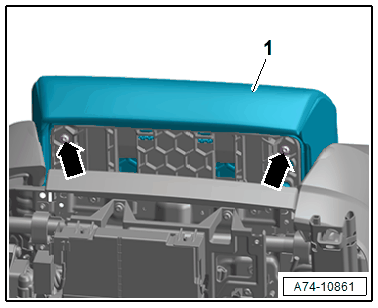

-- Remove the bolts -arrows- and unclip the seat cushion extension cushion -1- and tip it forward.

Courtesy of AUDI OF AMERICA, LLC

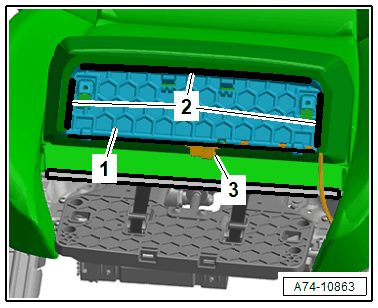

-- Equipped on some models: free up the wire and disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out and remove the retaining channel -2- for the cover using a flat-head screwdriver.

-- Remove the seat depth adjuster cushion -1- from the cover.
