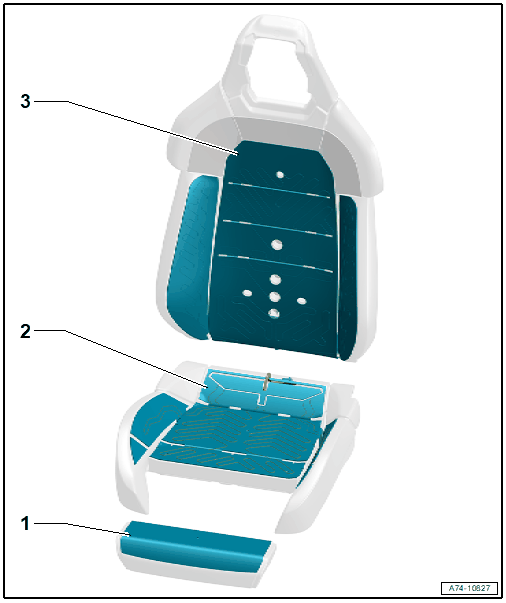

Overview - Seat Heating Element
- Seat Extension Heating Element
- Only Sport/Comfort seat (Q1J/Q2J)
- Left Front Seat Extension Heating Element -Z168- / Right Front Seat Extension Heating Element -Z169-
- Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING
- Seat Heating Element
- Left Front Seat Heating Element -Z45- with Left Front Seat Temperature Sensor -G344- /Right Front Seat Heating Element -Z46- with Right Front Seat Temperature Sensor -G345-
- Refer to Seat Heating Element, Removing and Installing .
- Backrest Heating Element
- Left Front Seat Heated Backrest -Z116- / Right Front Seat Heated Backrest -Z117-
- Refer to Backrest Heating Element, Removing and Installing .
