Cover And Cushion, Separating From Seat Pan: Removing

-- Remove the cover and cushion. Refer to Seat Pan Cover and Cushion, Removing and Installing  .

Vehicles with Sport/Comfort Seats (Q1J/Q2J)

-- Pry out and remove the retaining channel -2- for the cover using a flat-head screwdriver.

GWWA74-10863Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat depth adjuster cushion -1- from the cover.

Continuation for All Vehicles

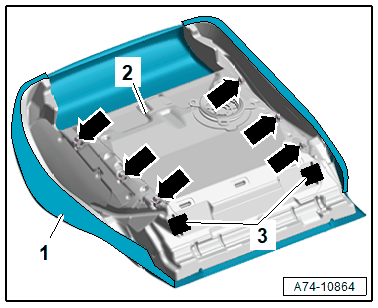

-- Guide out the bracket -3- for the cover out of the cushion -2-.

GWWA74-10864Courtesy of AUDI OF AMERICA, LLC

-- Loosen the cover -1- from the cushion to do so guide out the clips -arrows-.

-- Remove the cover -2- from the cushion -1- and cut upholstery clips -arrows- using pliers.

GWWA74-10617Courtesy of AUDI OF AMERICA, LLC

-- Cut through the remaining upholstery clips.
