Backrest Heating Element, Removing And Installing: Removing
The old seat heating element remains on the cushion and will be covered by the new heating element.
-- Cover and cushion are separated. Refer to Backrest Cover and Cushion, Separating .
-- Cut the wire directly on the old heating element.

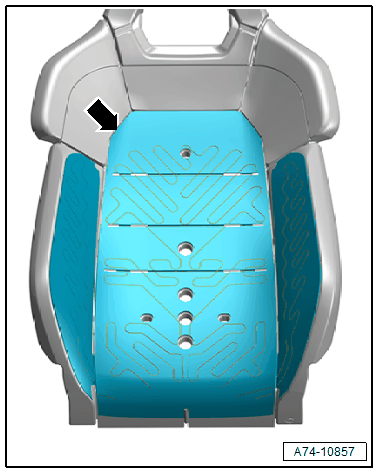

-- Align the new heating element -arrow- on the cushion.
-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.
-- Glue the heating elements so that they align with the old heating elements and are free of wrinkles.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
