Overview - Instrument Panel Cover, Driver Side

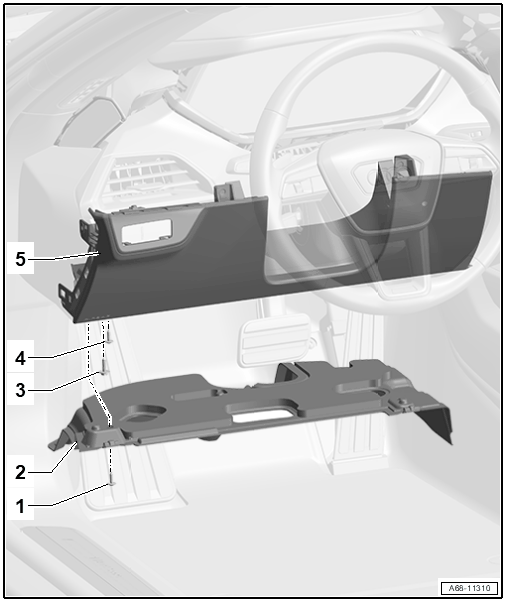

Fig 1: Exploded View Of Instrument Panel Cover, Driver Side

Courtesy of AUDI OF AMERICA, LLC

1. Expanding Rivet
2. Driver Side Footwell Cover
   • Refer to Driver Side Footwell Cover, Removing and Installing  .
3. Bolts
   • 3 Nm
   • Quantity: 5
4. Bolt
   • 1.5 Nm
5. Driver Side Instrument Panel Cover
   • Refer to Driver Side Instrument Panel Cover, Removing and Installing  .
