Overview - Glove Compartment

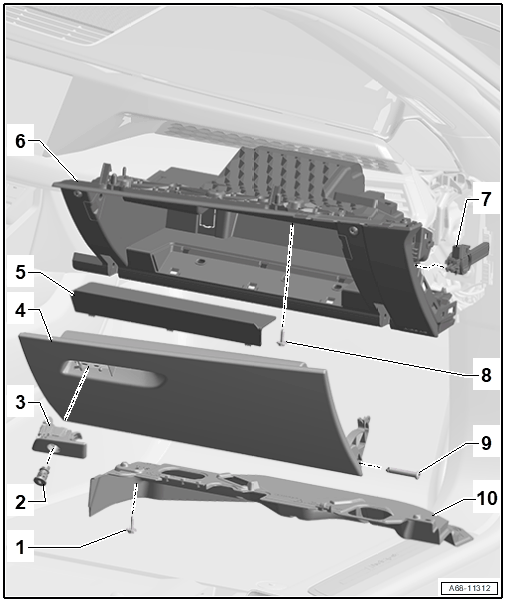

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Expanding Rivet
2. Lock Cylinder
   • Refer to Glove Compartment Handle Lock Cylinder, Removing and Installing  .
3. Glove Compartment Handle
   • Refer to Glove Compartment Handle, Removing and Installing  .
4. Glove Compartment Lid
   • Refer to Glove Compartment Lid, Removing and Installing  .
5. Cover
6. Glove Compartment
   • Refer to Glove Compartment, Removing and Installing  .
7. Brake Component with Glove Compartment Lamp Switch -E26-
   • Refer to GLOVE COMPARTMENT LAMP SWITCH E26, REMOVING AND INSTALLING .
8. Bolts
   • Tightening specifications and sequence
   • Quantity: 7
   • Refer to Fig 2
9. Glove Compartment Lid Hinge Pin
   • Quantity: 2
10. Front Passenger Side Footwell Cover
    • Refer to Driver Side Footwell Cover, Removing and Installing  .

Glove Compartment - Tightening Specification and Sequence

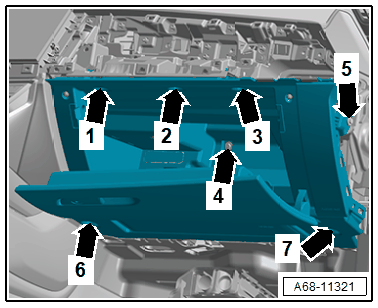

Fig 2: Glove Compartment - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC
