Overview - Sun Visors

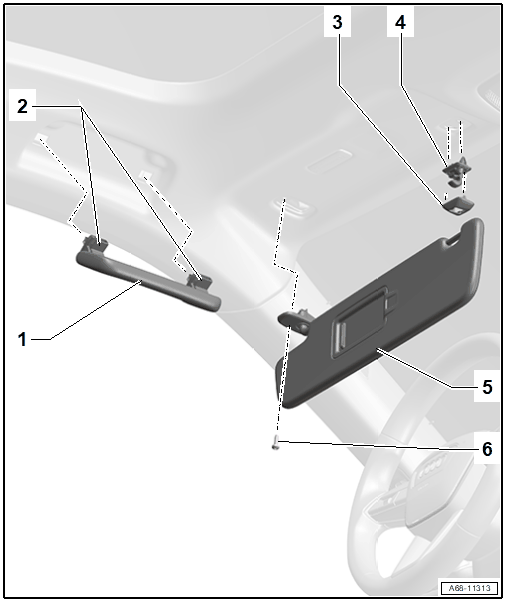

Fig 1: Exploded View Of Sun Visors

Courtesy of AUDI OF AMERICA, LLC

Roof Grab Handle
- Refer to Roof Grab Handle, Removing and Installing .
Expanding Caps
- Using the Angled Screwdriver:VAS 6416 , only unclip until the lock position is reached, do not remove entirely.
Expanding Cap
- Clipped into the sun visor center support
Sun Visor Center Bearing
- Refer to Sun Visor Center Support, Removing and Installing .
Sun Visor
- Engage in the sun visor mount in the opening in the body
- Refer to Sun Visor, Removing and Installing .
Bolt
- 5 Nm
