Rear Center Console Vent, Removing And Installing: Removing
-- Remove the center console storage compartment cover. Refer to CENTER CONSOLE STORAGE COMPARTMENT COVER, REMOVING AND INSTALLING .
-- Unclip the cable holder from the air duct.

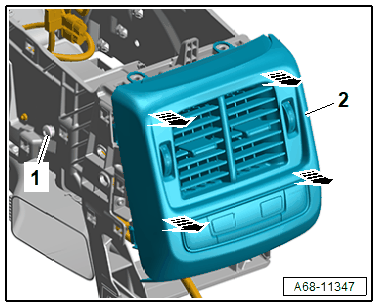

-- Remove the left and right bolt -1- for the air duct.
-- Unclip the vent -2- by hand alternating at the edges from the center console in direction of -arrows-.
-- Disconnect the connectors.
-- Remove the vent with the air duct from the installation opening.
