Center Console Rear Trim, Removing And Installing: Removing

-- Move the front seats all the way forward.

-- Detach the bench seat and fold backward. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the left and right lower side center console trim panel. Refer to Center Console Trim Panel, Removing and Installing  .

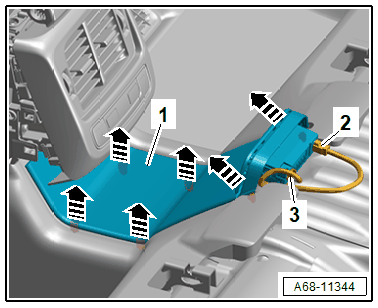

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the antenna wire -2-.

-- Unclip the rear trim -1- using the scraper no. 7 from the Scraper Set:VAS 6845  in direction of -arrows-.

-- Free up the wire and remove the trim.
