Center Console Insert, Removing And Installing: Removing

-- Remove the center console. Refer to Center Console, Removing and Installing  .

-- Equipment version with ambient lighting: disconnect the connectors -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cupholder insert.

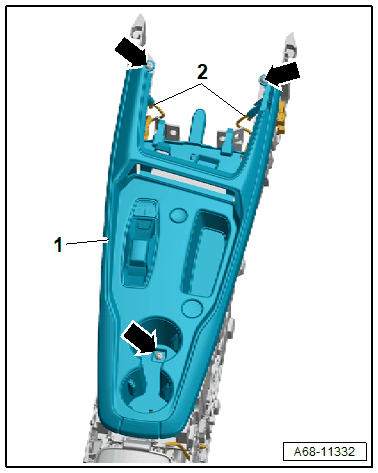

-- Remove the bolts -arrows-.

-- Unclip the center console insert -1- from the center console using the trim removal wedge no. 7 from the Scraper Set :VAS 6845  .

-- Disconnect the connectors and remove the center console insert.
