Center Console Bracket, Removing And Installing: Removing
-- Remove the center console. Refer to Center Console, Removing and Installing .
-- Lift up the center tunnel noise insulation in the area of the respective bracket and push to the side.

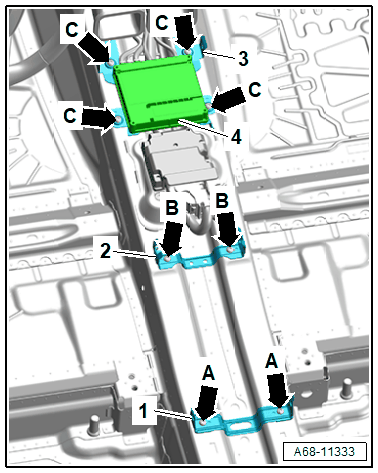

Remove the front bracket -3-.
-- Move the front seats as far back as possible.
-- Remove the bolts -C arrows-.
-- If installed, remove the Control Module for Emergency Call Module and Communication Unit -J949- -4- from the bracket.
Remove the center bracket -2-.
-- Move the front seats as far back as possible.
-- Remove the bolts -B arrows-.
Remove the rear bracket -1-.
-- Move the front seats all the way forward.
-- Remove the bolts -A arrows-.
