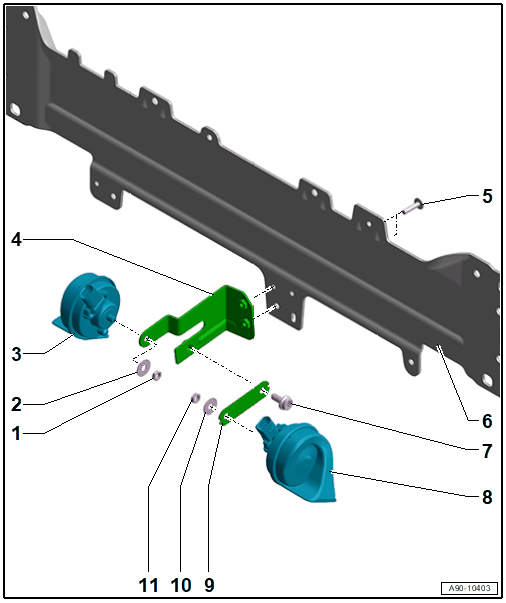

Overview - Horn

GWWA90-10403

Courtesy of AUDI OF AMERICA, LLC

Nut
- 11 Nm
Washer
High Tone Horn -H2-
- Refer to High Tone Horn H2/Low Tone Horn H7, Removing and Installing .
Bracket
- Removing and installing. Refer to High Tone Horn H2/Low Tone Horn H7, Removing and Installing .
Bolt
- Quantity: 2
- 11 Nm
Lock Carrier - Lower Section
Bolt
- 8 Nm
Low Tone Horn -H7-
- Refer to High Tone Horn H2/Low Tone Horn H7, Removing and Installing .
Retaining Bracket
Washer
Nut
- 11 Nm
