Overview - Rear Lid Tail Lamps

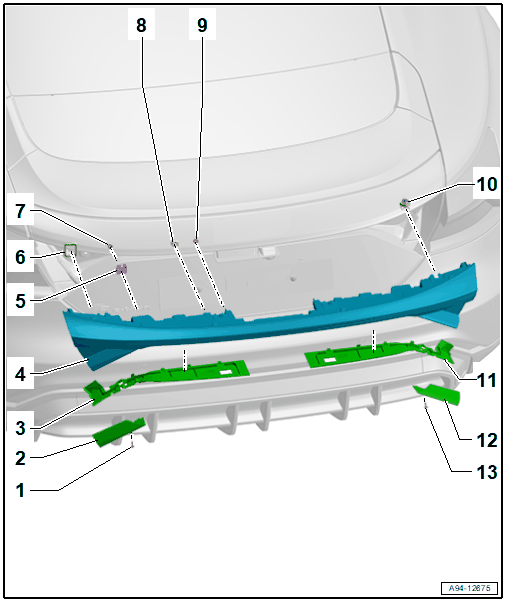

Fig 1: Exploded View Of Rear Lid Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 1 Nm
2. Trim Molding
   • Refer to Rear Lid Tail Lamp, Removing and Installing  .
3. Tail Lamp Lower Cover
   • Refer to Rear Lid Tail Lamp, Removing and Installing  .
4. Center Tail Lamp -MX13-
   • With Left License Plate Lamp -X4- and Right License Plate Lamp -X5-
   • Refer to Rear Lid Tail Lamp, Removing and Installing  .
5. Threaded Plate
6. Seal
7. Nut
   • Quantity: 4
   • Tightening specification and sequence. Refer to Fig 2.
8. Seal
9. Nut
   • Quantity: 2
   • Tightening specification and sequence. Refer to Fig 2.
10. Mount
    • Replace if the seal is damaged
    • Quantity: 4
11. Tail Lamp Lower Cover
    • Refer to Rear Lid Tail Lamp, Removing and Installing  .
12. Trim Molding
    • Refer to Rear Lid Tail Lamp, Removing and Installing  .
13. Bolt
    • 1 Nm

Tightening specification and sequence for the tail lamps

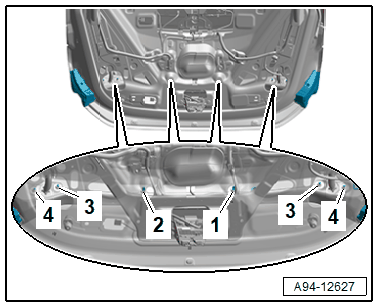

Fig 2: Tightening Sequence For The Tail Lamps

Courtesy of AUDI OF AMERICA, LLC
