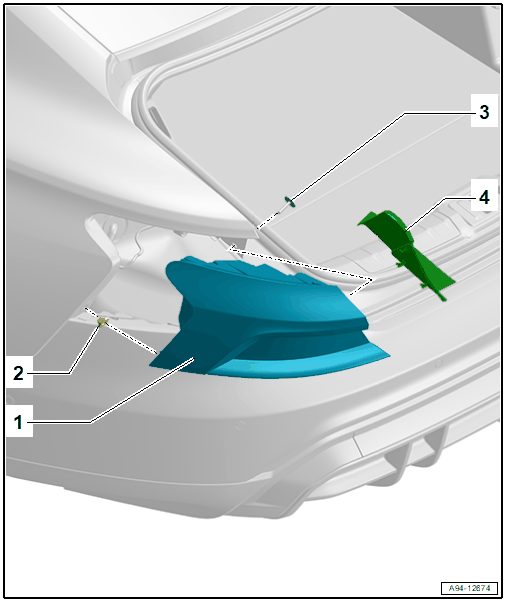

Overview - Body Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

Left Tail Lamp -MX3- /Right Tail Lamp -MX4-
- Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
Clip Nut
Bolt
- Quantity: 2
- 8 Nm
Tail Lamp Cover
- Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
