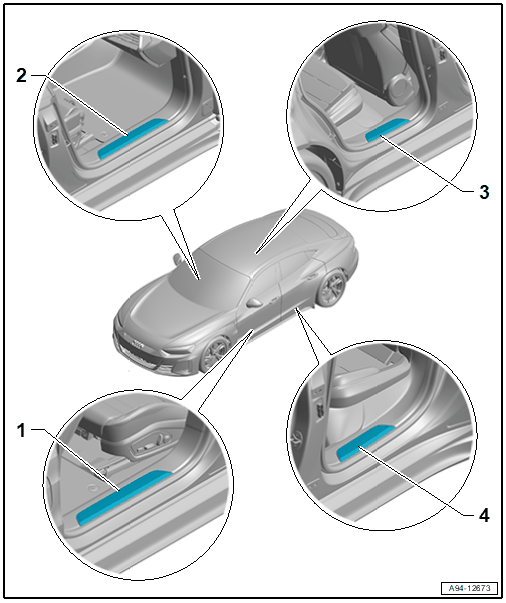

Overview - Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

Driver Side Sill Panel Strip Ambient Lighting Lamp -W102-
- Integrated in the A-pillar lower trim panel
- Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Front Passenger Side Sill Panel Strip Ambient Lighting Lamp -W103-
- Integrated in the A-pillar lower trim panel
- Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Passenger Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W104-
- Integrated in the C-pillar lower trim panel
- Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W105-
- Integrated in the C-pillar lower trim panel
- Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
