Overview - Coolant Pipes

• The arrows on the coolant pipes and ends of coolant hoses must align.

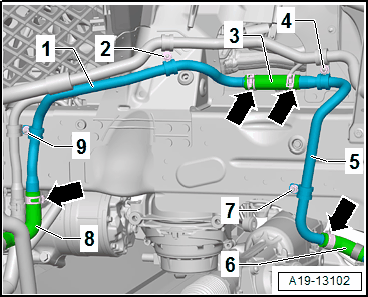

Fig 1: Exploded View Of Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Coolant Pipe
   • Removing and Installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
2. Bolt
   • 9 Nm
3. O-Ring
   • Replace after removing
4. Bolt
   • 9 Nm
5. Front Coolant Pipe
   • With seal
   • Replace the seal after removal.
   • Removing and Installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
6. Bolt
   • 9 Nm
7. O-Ring
   • Replace after removing
8. O-Ring
   • Replace after removing
9. Bolt
   • 9 Nm
10. Connection
11. O-Ring
    • Replace after removing
12. Bolt
    • 9 Nm
13. Lower right coolant pipe
    • Removing and Installing. Refer to LARGE RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
14. Clamp
15. Bolt
    • 9 Nm
16. Clamp
17. Bolt
    • 9 Nm
18. O-Ring
    • Replace after removing
19. Clamp
20. Bolt
    • 9 Nm
21. Small Right Rear Coolant Pipe
    • Removing and Installing. Refer to SMALL RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
22. Bolt
    • 9 Nm
23. Bolt
    • 9 Nm
24. Rear left coolant pipe
    • Removing and Installing. Refer to LEFT REAR COOLANT PIPE, REMOVING AND INSTALLING .
25. Seal
    • Replace after removing
26. Bolt
    • 9 Nm
27. O-Ring
    • Replace after removing
28. O-Ring
    • Replace after removing
29. Bolt
    • 9 Nm
30. Connection
31. Seal
    • Replace after removing
32. Bolt
    • 9 Nm

Right Coolant Pipe - Tightening Specification, Vehicles without High-Voltage System

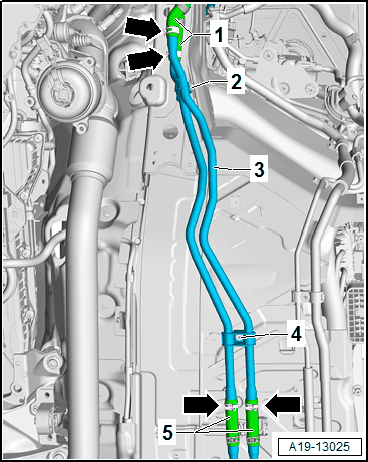

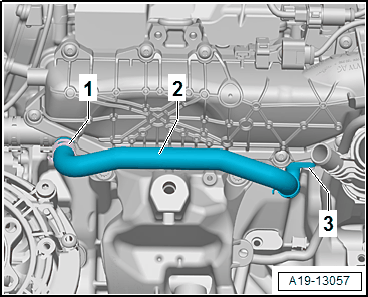

Fig 2: Right Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -2- to 9 Nm.

Right Connection - Tightening Specification, shown on Vehicle with High-Voltage System

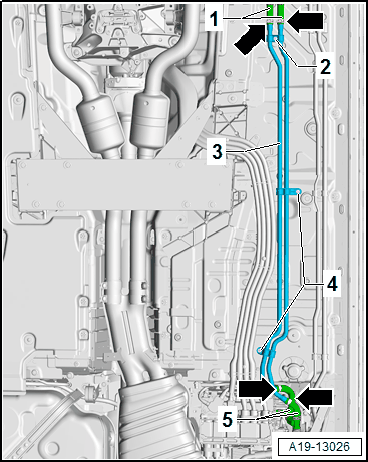

Fig 3: Right Coolant Pipe - Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -3- to 8 Nm.

Coolant Pipe on Longitudinal Member, Equipment Versions without Parking/Auxiliary Heater and Vehicles without High-Voltage System - Tightening Specification

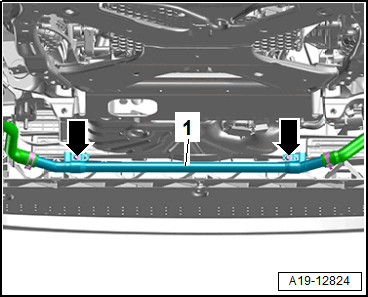

Fig 4: Coolant Pipe on Longitudinal Member, Equipment Versions without Parking/Auxiliary Heater and Vehicles without High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -arrows- to 5 Nm.

Coolant Pipes on Longitudinal Member, Equipment Versions with Parking/Auxiliary Heater or Vehicles with High-Voltage System - Tightening Specification

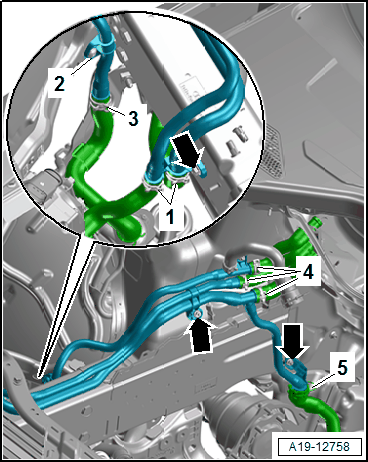

Fig 5: Coolant Pipes on Longitudinal Member, Equipment Versions with Parking/Auxiliary Heater or Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

Vehicles without High-Voltage System:

-- Tighten the nuts -arrows- and bolt -2- to 5 Nm.

Vehicles with High-Voltage System:

-- Tighten the nuts -arrows- to 5 Nm and bolt -2- to 8 Nm.

Coolant Pipe on Inner Left Longitudinal Member, Vehicles with High-Voltage System - Tightening Specification

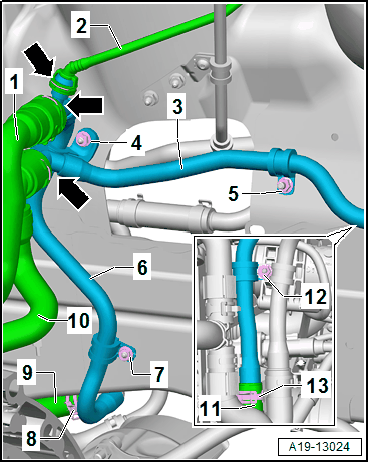

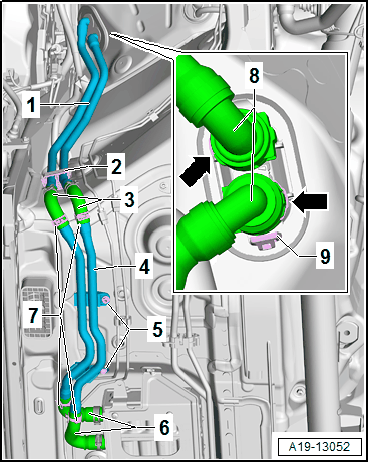

Fig 6: Coolant Pipe on Inner Left Longitudinal Member, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -4, 5, 7 and 12- to 4.5 Nm.

Coolant Pipe on Outer Left Longitudinal Member, vehicles with High-Voltage System - Tightening Specification

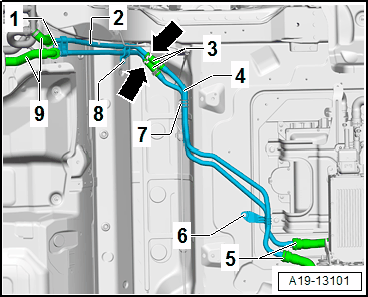

Fig 7: Coolant Pipe on Outer Left Longitudinal Member, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -2, 4, 7 and 9- to 4.5 Nm.

Coolant Pipe from Power Unit to High-Voltage Battery, vehicles with High-Voltage System - Tightening Specification

Fig 8: Coolant Pipe from Power Unit to High-Voltage Battery, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -1, 6, 7, 8- to 4.5 Nm.

Front Coolant Pipe to Power Unit, Vehicles with High-Voltage System - Tightening Specification

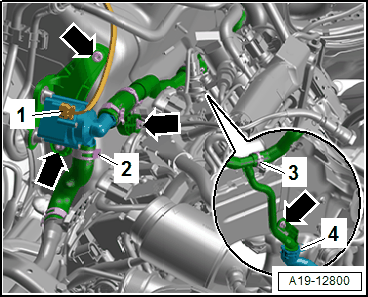

Fig 9: Front Coolant Pipe to Power Unit, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -2- to 2.5 Nm and the nut -4- to 4.5 Nm.

Rear Coolant Pipe to Power Unit, Vehicles with High-Voltage System - Tightening Specification

Fig 10: Rear Coolant Pipe to Power Unit, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -2 and 4- to 4.5 Nm.

Coolant Pipe to PTC Heater, Vehicles with High-Voltage System - Tightening Specification

Fig 11: Coolant Pipe to PTC Heater, Vehicles with High-Voltage System

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -5- to 4.5 Nm.

Coolant Pipe on Lock Carrier - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 5.5 Nm.
