Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi A8 Quattro, 2023 Audi A8 Quattro, and 2022 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

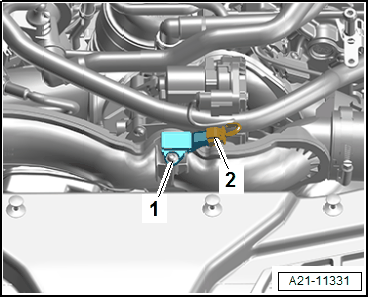

GWWA21-11331Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the Charge Air Pressure Sensor -G31- from the air duct pipe.
