Rear Center Armrest, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the single seat seat cushion. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the rear center console side trim panels. Refer to REAR CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear center console cover. Refer to REAR CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Remove the storage compartment in the rear center console. Refer to REAR CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

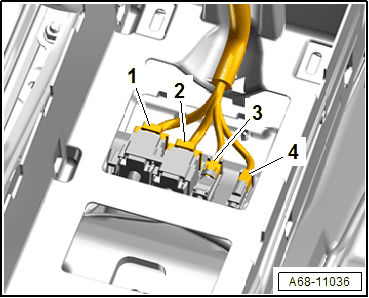

-- Disconnect the connectors -1, 2, 3 and 4-.

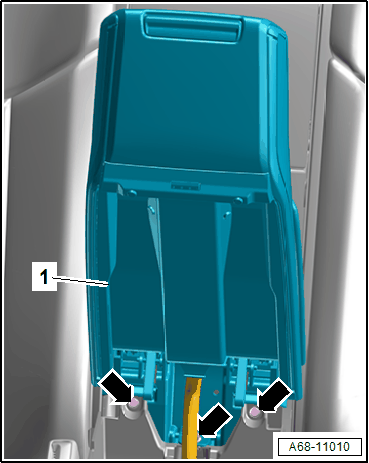

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center armrest -1-.
