Rear Center Armrest Insert Trim, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front cover for the rear center armrest. Refer to REAR CENTER ARMREST COVER, REMOVING AND INSTALLING .

-- Remove the spacer wedge for the rear center armrest cover. Refer to REAR CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .

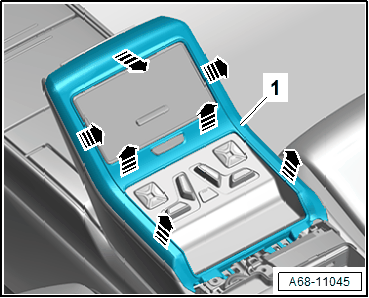

-- Remove the trim -1- for the center armrest insert from the center armrest using the Wedge: T10383/1  or the Trim Removal Wedge: 3409  -arrows-.

-- Disengage and remove the remaining retainers of the center console insert trim.

-- Disconnect the connector, to do this press the release.
