Overview - Sun Shade

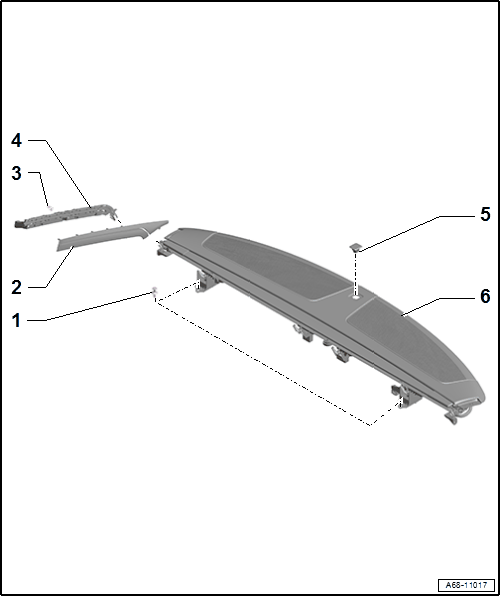

Fig 1: Exploded View Of Sun Shade

Courtesy of AUDI OF AMERICA, LLC

Expanding Clip
- Quantity: 2
- Removing with Pliers: T40172C
Cover
- For the sun shade guide rail
- Quantity: 2
- Removing and Installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Engage into the guide rail and press on it until it engages
Clip
- Quantity: 2
- Insert into the guide rail
- Replace damaged or deformed clips
Guide Rail
- Quantity: 2
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
- Mount it on the sun shade and press on it until it audibly latches into place
Rear Sunlight Photo Sensor -G914-
Sun Shade
- Removing and Installing. Refer to SUN SHADE, REMOVING AND INSTALLING .
- Clip into the back part of the rear shelf
- Install the sun shade with rear shelf in the rear window frame and tighten it down
