Rear Center Console Vent, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

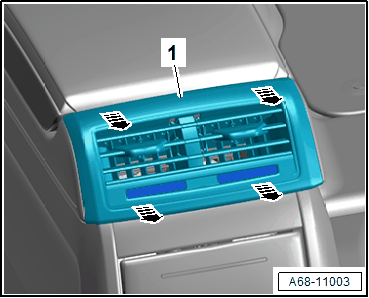

-- Unclip the vent -1- at the top and bottom carefully using the scraper from the : VAS 6845  or the Trim Removal Wedge: 3409  from the center console -arrows-.

-- Remove the vent from the installation opening.

-- Disconnect the connectors by pressing the release.
