Folding Tray Table In Rear Center Console, Removing And Installing: Removing

-- Remove the front center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the rear center console side trim panels. Refer to REAR CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the rear center console. Refer to REAR CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Remove the cupholder in the rear center console. Refer to REAR CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .

-- Remove the storage compartment in the rear center console. Refer to REAR CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

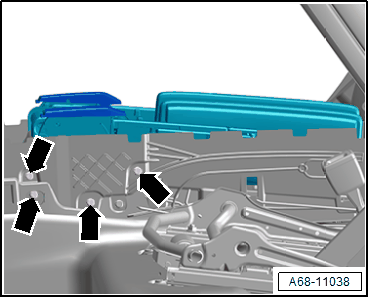

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the procedure on the opposite side.

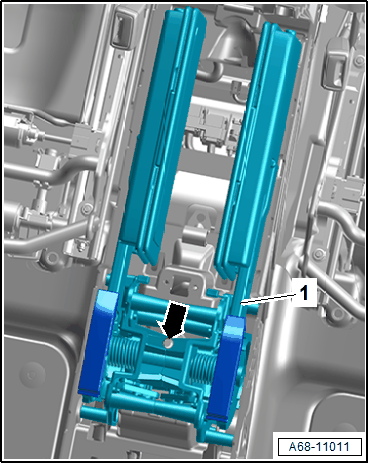

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the folding tray table -1- upward out of the center console.
