Center Console Insert, Removing And Installing: Removing

-- Remove the rear vent in the center console. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .

-- Remove the front center console insert vent. Refer to FRONT CENTER CONSOLE INSERT COVER, REMOVING AND INSTALLING .

-- Remove the front center armrest in the center console. Refer to FRONT CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the front center armrest in the front center console. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .

-- Remove the cupholder in the front center console. Refer to FRONT CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .

-- Remove the Selector Lever Transmission Range Display -Y5-. Refer to COMPONENT LOCATION OVERVIEW - CENTER CONSOLE LAMPS .

-- Move the front seat all the way back.

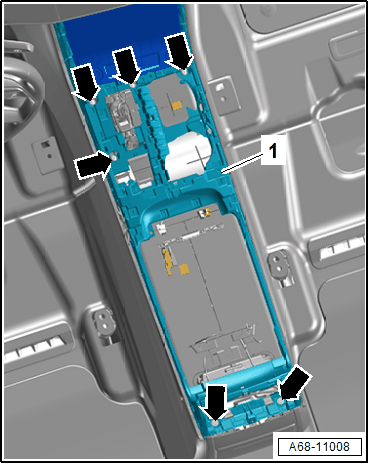

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the center console insert -1- slightly towards the rear and carefully remove under the instrument panel.

-- Press the release and disconnect the antenna cable.

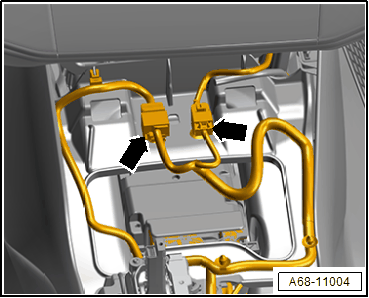

-- Disconnect the connectors -arrows- by pressing the release.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console insert.
