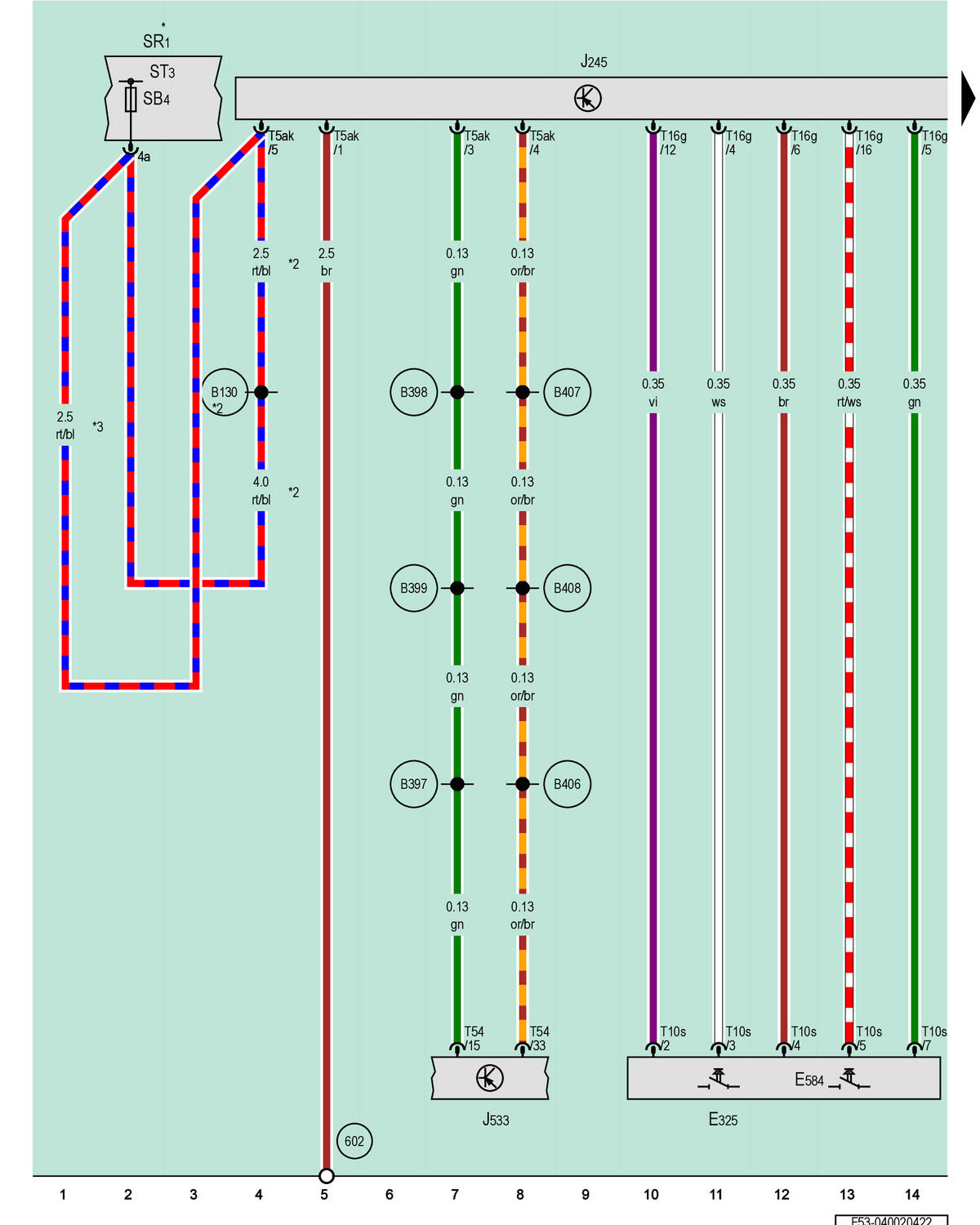

Sunroof Button, Sunroof Control Module

Courtesy of AUDI OF AMERICA, LLC

E325

Sunroof Button

E584

Roof Shade Button 1

J245

Sunroof Control Module

J533

Data Bus on Board Diagnostic Interface

SR1

Relay and Fuse Panel 1

ST3

Fuse Panel 3, Black

SB4

Fuse 4 (On Fuse Panel B)

T5ak

5-Pin Connector, Black

T10s

10-Pin Connector, Black

T16g

16-Pin Connector, Black

T54

54-Pin Connector, Black

602

Ground Connection in Left Front Footwell

B130

Sunroof Connection (in Interior Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Omitted as a Running Change

*3

Running Change
