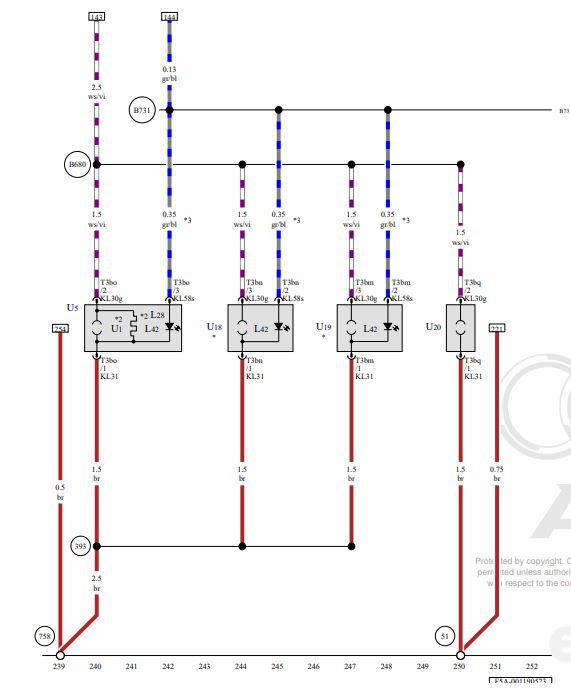

CIGARETTER Lighter, 12 V Socket, 12 V Socket 2, 12 V Socket 3, 12 Socket 4

Courtesy of AUDI OF AMERICA, LLC

L28

Cigarette Lighter Illumination Bulb

L42

Socket Illumination Bulb

T3bm

3-Pin Connector, Black

T3bn

3-Pin Connector, Black

T3bo

3-Pin Connector, Black

T3bq

3-Pin Connector, Black

Cigarette Lighter

12 V Socket

U18

12 V Socket 2, In the Rear Center Console

U19

12 V Socket 3, In the Rear Center Console

U20

12 V Socket 4

Ground Connection in Luggage Compartment, Right

393

Ground Connection 28 (in Main Wiring Harness)

758

Ground Connection 3 on Center Tunnel

B680

Connection (Socket) in Interior Wiring Harness

B731

Connection 58s (in Roof Wiring Harness) 1

Pre-Wired Component

For Vehicles with a Smoking Package

Omitted as a Running Change
