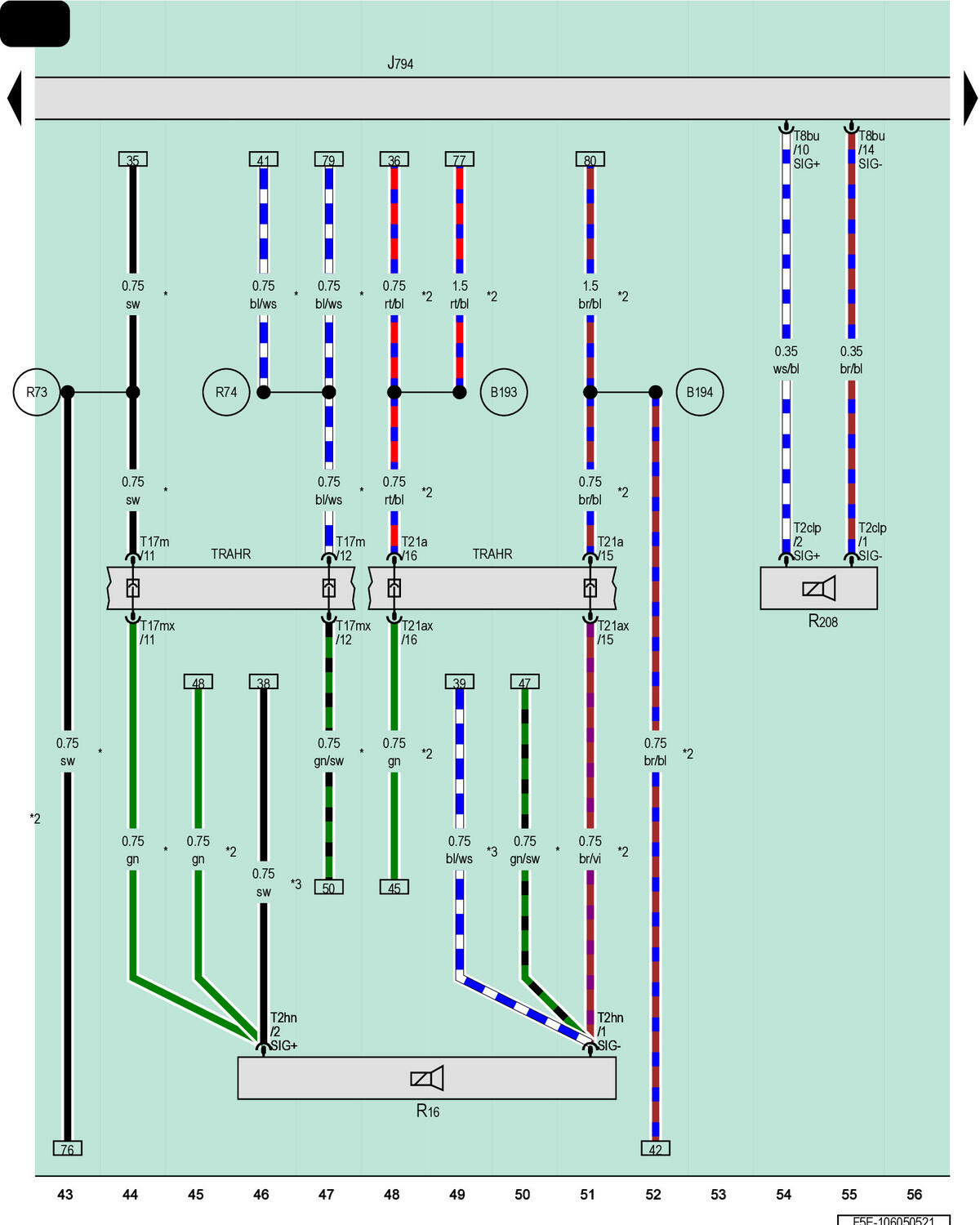

Information Electronics Control Module 1, Right Rear Treble Speaker, Center Speaker
J794
Information Electronics Control Module 1
R16
Right Rear Treble Speaker
R208
Center Speaker
T2clp
2-Pin Connector, Black
T2hn
2-Pin Connector, Black
T8bu
8-Pin Connector, Black
T17m
17-Pin Connector, Black
T17mx
17-Pin Connector, Black
T21a
21-Pin Connector, Black
T21ax
21-Pin Connector, Black
TRAHR
Right Rear Wheel Housing Wiring Coupling Point
B193
Right Rear Speaker Positive Connection (in Interior Wiring Harness)
B194
Right Rear Speaker Negative Connection (in Interior Wiring Harness)
R73
Speaker Positive Connection (in Right Rear Door Wiring Harness)
R74
Speaker Negative Connection (in Right Rear Door Wiring Harness)
*
Coupe
*2
For Convertible
*3
Sportback
