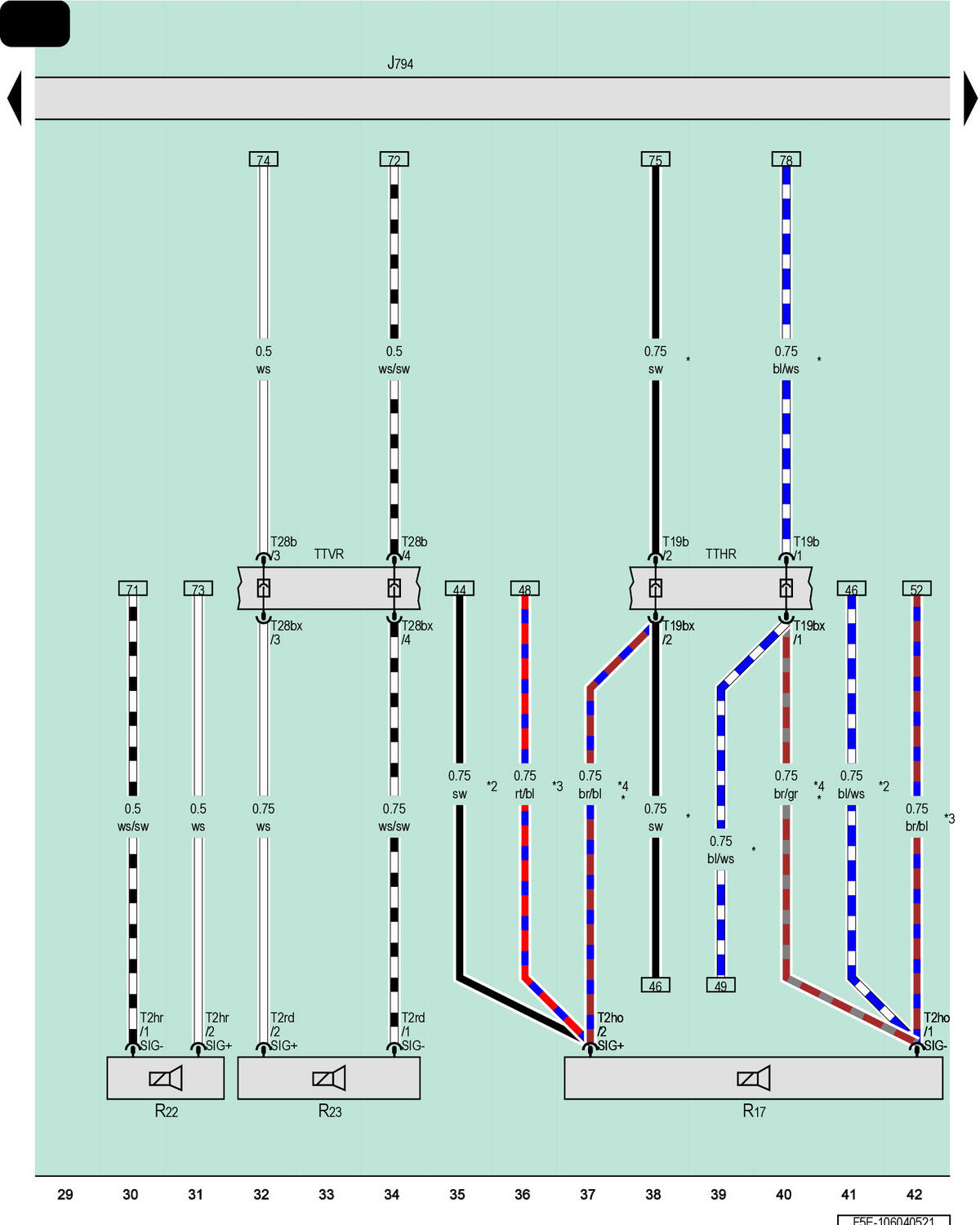

Information Electronics Control Module 1, Right Rear Bass Speaker, Right Front Treble Speaker, Right Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R17

Right Rear Bass Speaker

R22

Right Front Treble Speaker

R23

Right Front Bass Speaker

T2ho

2-Pin Connector, Black

T2hr

2-Pin Connector, Black

T2rd

2-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTVR

Right Front Door Coupling Point

*

Sportback

*2

Coupe

*3

For Convertible

*4

Different Wire Color Possible
