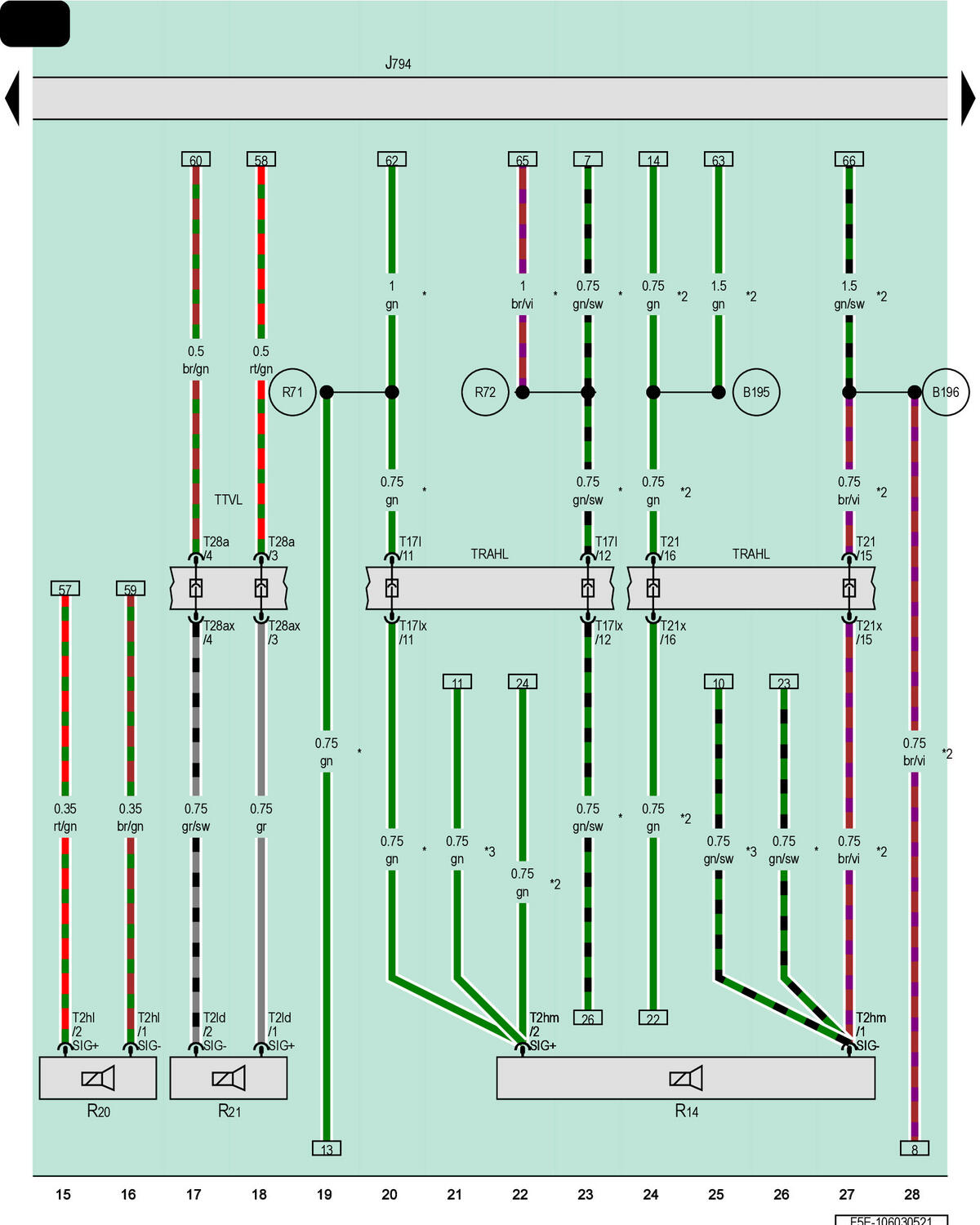

Information Electronics Control Module 1, Left Rear Treble Speaker, Left Front Treble Speaker, Left Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R14

Left Rear Treble Speaker

R20

Left Front Treble Speaker

R21

Left Front Bass Speaker

T2hl

2-Pin Connector, Black

T2hm

2-Pin Connector, Black

T2ld

2-Pin Connector, Black

T17l

17-Pin Connector, Black

T17lx

17-Pin Connector, Black

T21

21-Pin Connector, Black

T21x

21-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

TRAHL

Left Rear Wheel Housing Wiring Coupling Point

TTVL

Left Front Door Coupling Point

B195

Left Rear Speaker Positive Connection (in Interior Wiring Harness)

B196

Left Rear Speaker Negative Connection (in Interior Wiring Harness)

R71

Speaker Positive Connection (in Left Rear Door Wiring Harness)

R72

Speaker Negative Connection (in Left Rear Door Wiring Harness)

Coupe

For Convertible

Sportback
