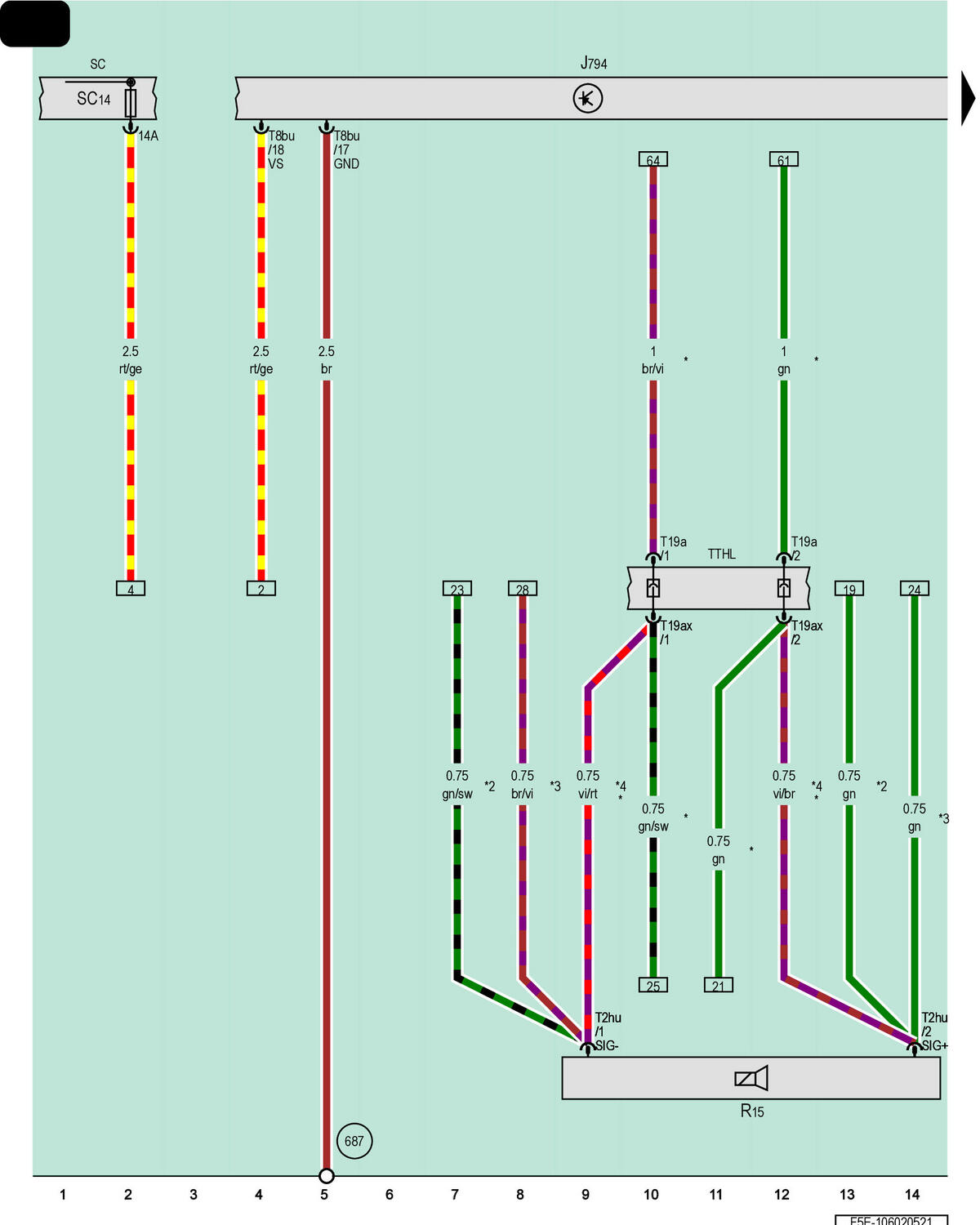

Information Electronics Control Module 1, Left Rear Bass Speaker, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R15

Left Rear Bass Speaker

SC

Fuse Panel C

SC14

Fuse 14 (On Fuse Panel C)

T2hu

2-Pin Connector, Black

T8bu

8-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

687

Ground Connection 1 on Center Tunnel

*

Sportback

*2

Coupe

*3

For Convertible

*4

Different Wire Color Possible
