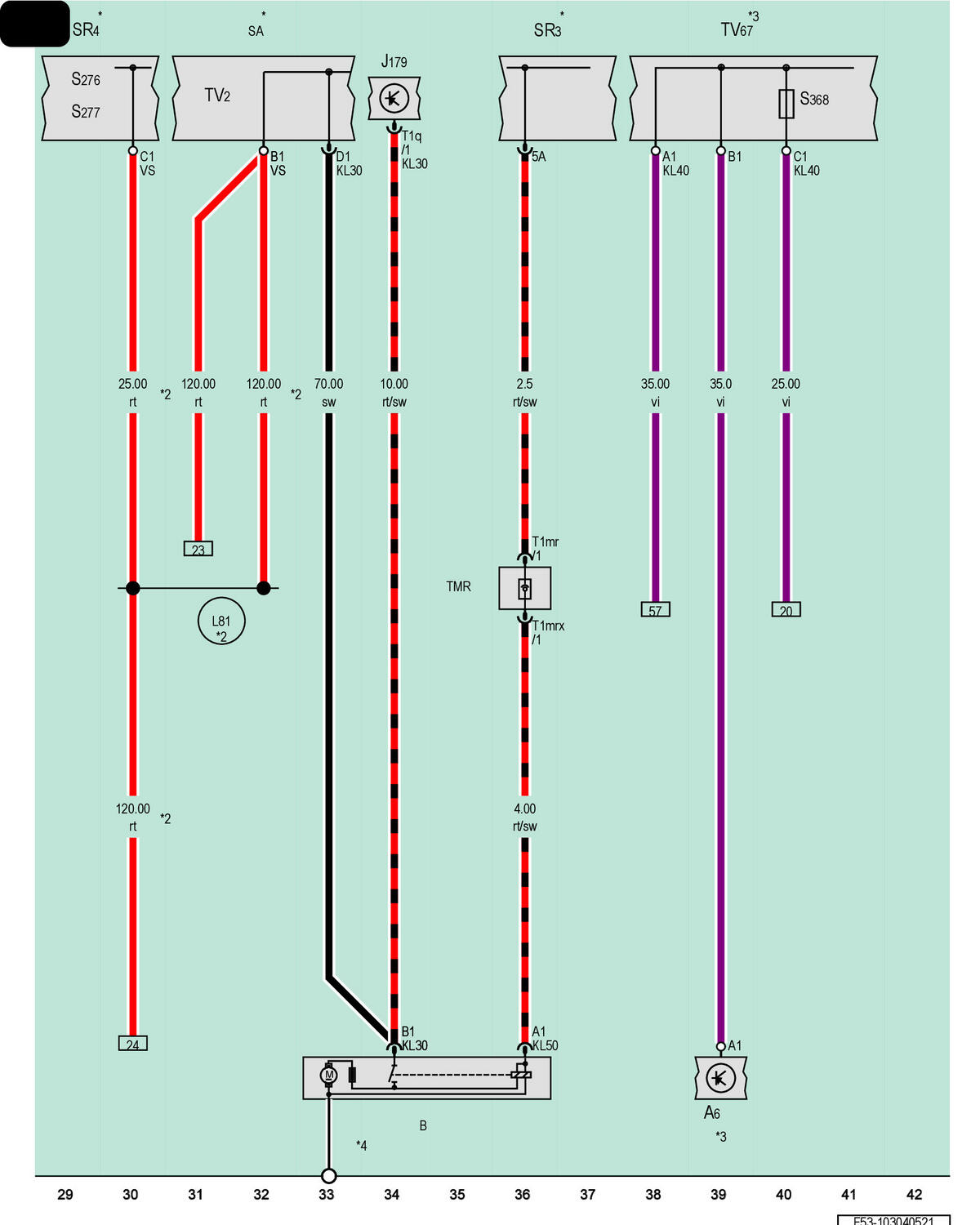

Starter, Automatic Glow Time Control Module, Terminal 40 Wire Junction 2
A6
Battery, 48 V
B
Starter
J179
Automatic Glow Time Control Module
SA
Fuse Panel A
SR3
Relay and Fuse Panel 3, In the Center Plenum Chamber
SR4
Relay and Fuse Panel 4
S276
Heating Element Fuse 1
S277
Heating Element Fuse 2
S368
Terminal 40 Wire Junction 2 Fuse 1
T1mr
1-Pin Connector, Black
T1mrx
1-Pin Connector, Black
T1q
1-Pin Connector, Black
TMR
Coupling Point in Engine/Motor Compartment, Right
TV2
Terminal 30 Wire Junction
TV67
Terminal 40 Wire Junction 2, In the Luggage Compartment
L81
Connection (in Auxiliary Heater Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Auxiliary Heater
*3
Refer to Applicable Wiring Diagram for 48 Volt System
*4
Ground Supply via the Housing
