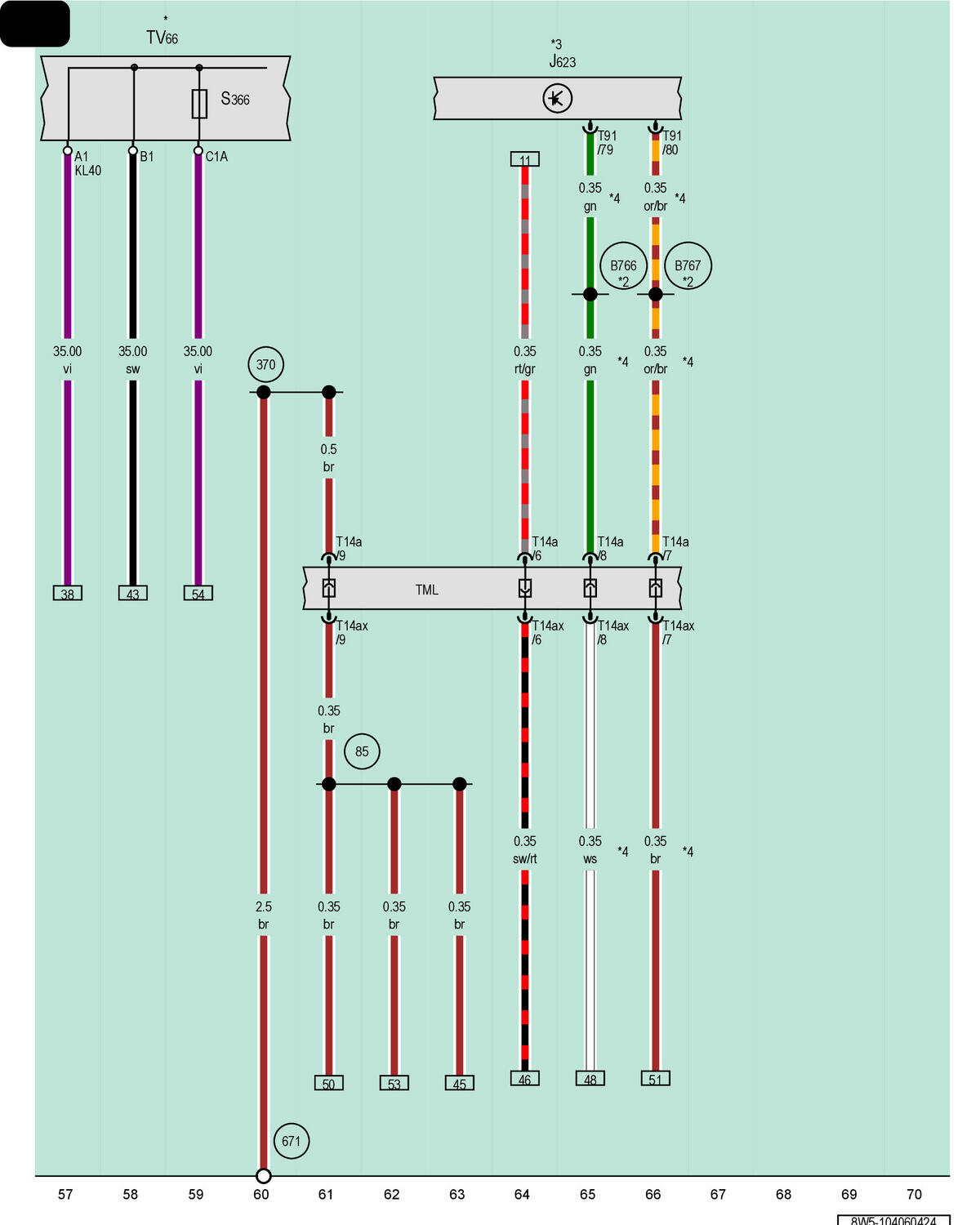

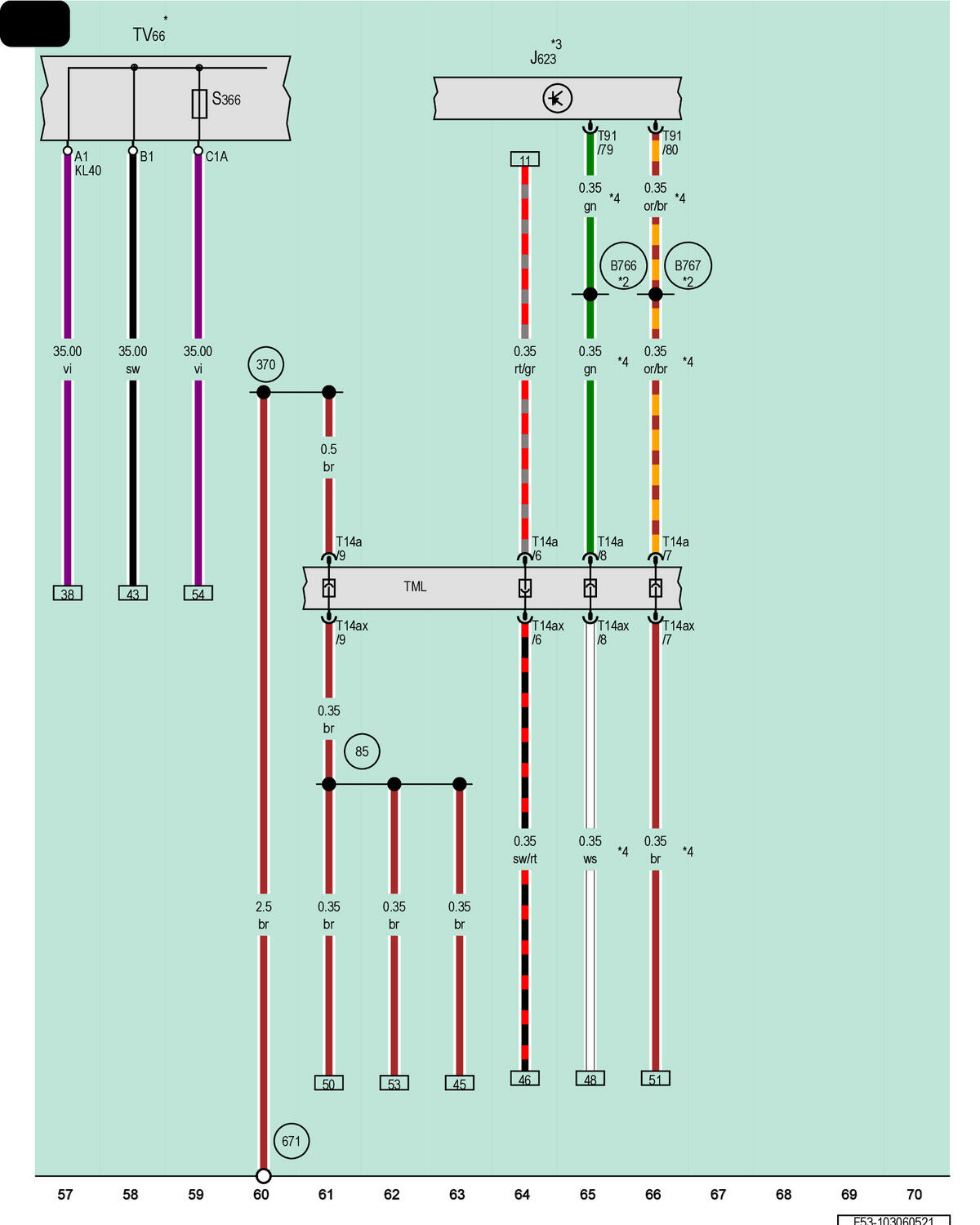

Engine/Motor Control Module, Terminal 40 Wire Junction
J623
Engine/Motor Control Module, In the Plenum Chamber
S366
Terminal 40 Wire Junction Fuse 1
T14a
14-Pin Connector, Black
T14ax
14-Pin Connector, Black
TML
Coupling Point in Engine/Motor Compartment, Left
TV66
Terminal 40 Wire Junction, In the Engine/Motor Compartment
T91
91-Pin Connector, Black
85
Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)
370
Ground Connection 5 (in Main Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member
B766
High Bus Connection 2 (in Interior Wiring Harness)
B767
Low Bus Connection 2 (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for 48 Volt System
*2
Refer to the Applicable CAN Bus Network Wiring Diagram
*3
Refer to Applicable Engine Wiring Diagram
*4
Data Bus Wire (CAN Bus)
