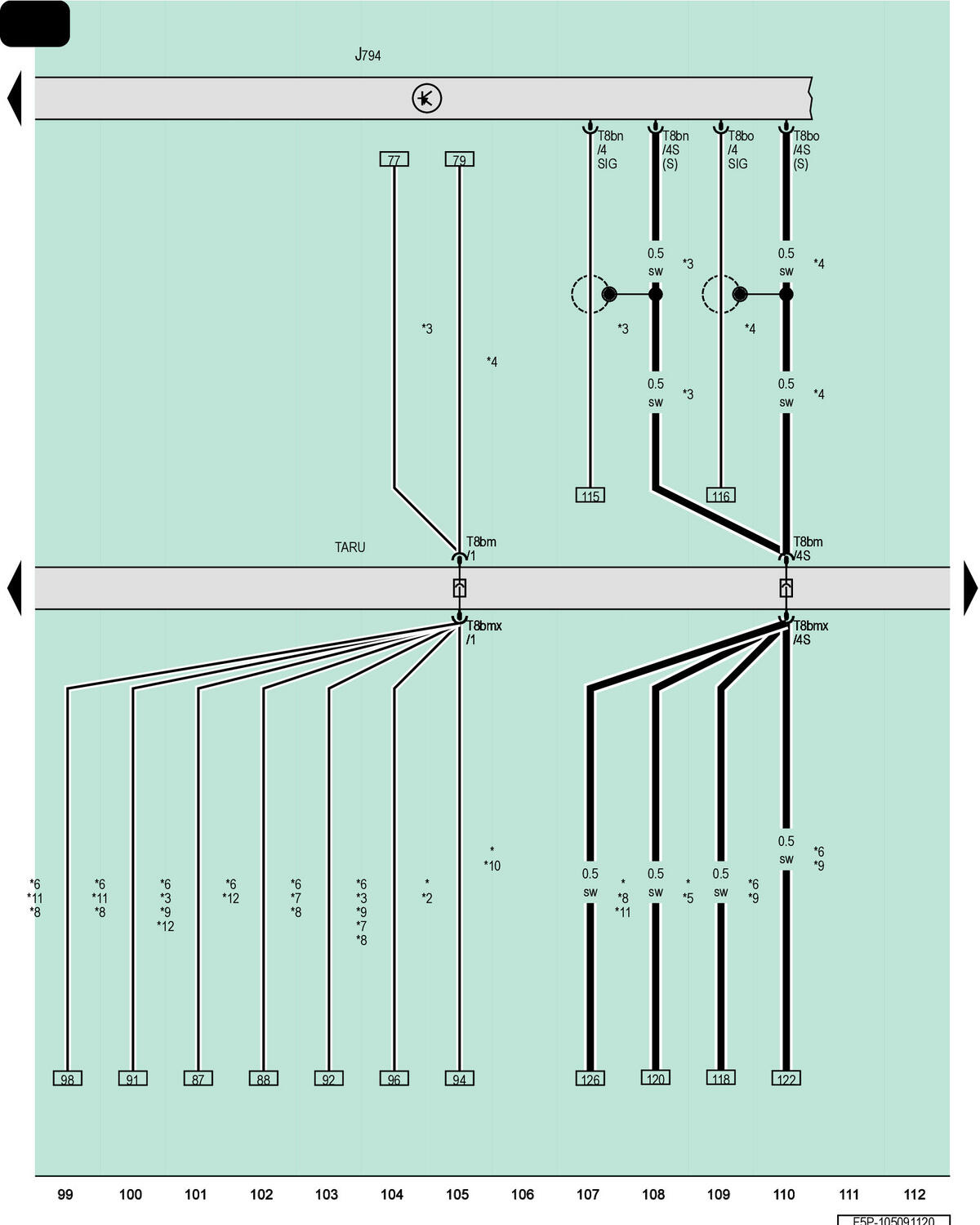

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

T8bm

8-Pin Connector, White

T8bmx

8-Pin Connector, White

T8bn

8-Pin Connector, Light Blue

T8bo

8-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with Japan Equipment

*2

For Vehicles with TV Tuner

*3

Not for USA

*4

For USA Only

*5

For Vehicles Without Digital Radio

*6

For Vehicles Without Japan Equipment

*7

Through July 2020

*8

Coupe

*9

For Vehicles with Digital Radio

*10

For Vehicles Without TV Tuner

*11

From July 2020

*12

Sportback
