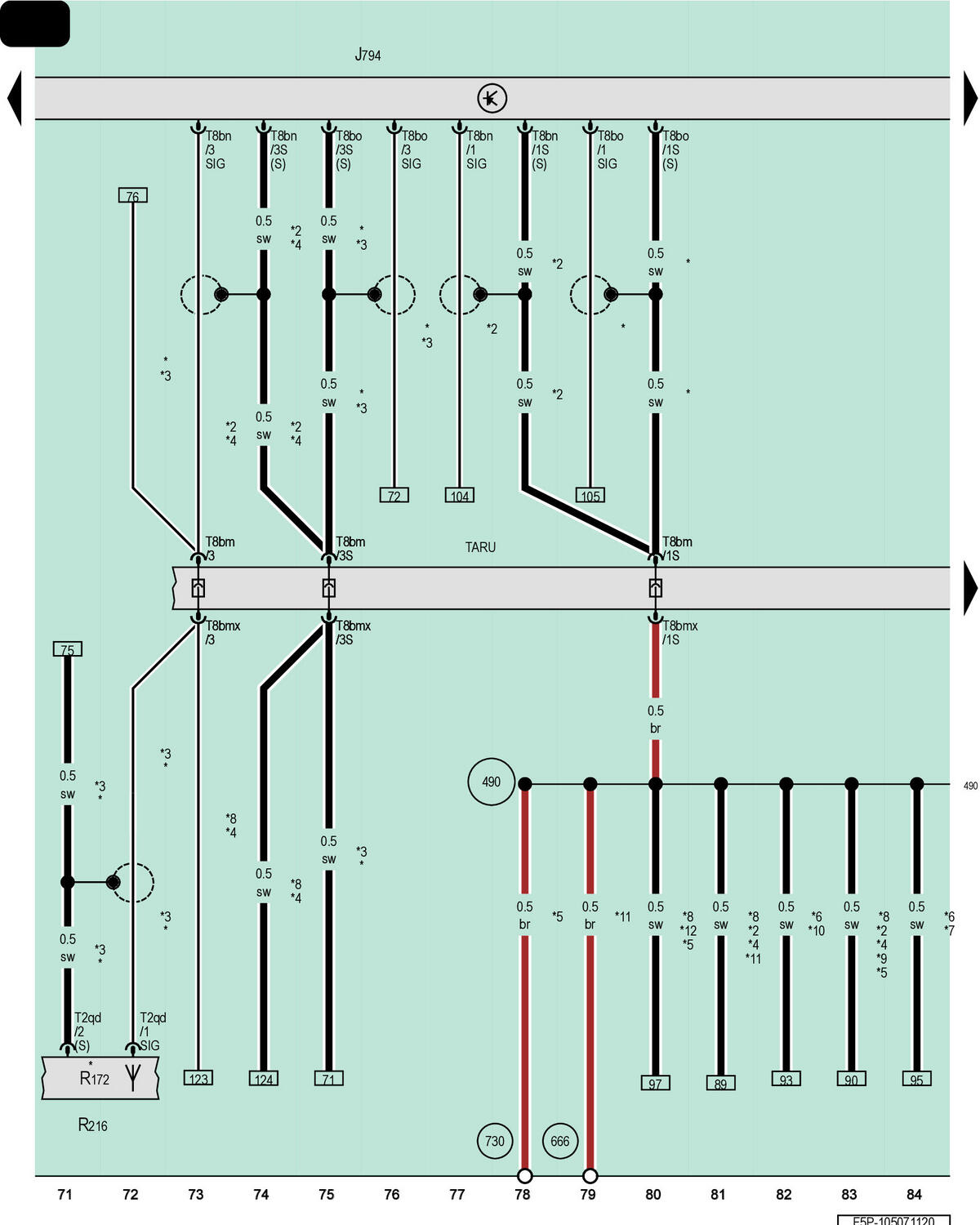

Information Electronics Control Module 1, Roof Antenna
J794
Information Electronics Control Module 1
R172
Satellite Tuner Antenna
R216
Roof Antenna
T2qd
2-Pin Connector, Green
T8bm
8-Pin Connector, White
T8bmx
8-Pin Connector, White
T8bn
8-Pin Connector, Light Blue
T8bo
8-Pin Connector, Black
TARU
Coupling Point on Right A-Pillar, Bottom
490
Shielding 2 Ground Connection (in Radio Navigation System Wiring Harness)
666
Ground Connection on Roof, Right Rear
730
Ground Connection 1 on Right Rear Wheel Housing
*
For USA Only
*2
Not for USA
*3
For Vehicles with Satellite Radio
*4
For Vehicles with Digital Radio
*5
Coupe
*6
For Vehicles with Japan Equipment
*7
For Vehicles with TV Tuner
*8
For Vehicles Without Japan Equipment
*9
Through July 2020
*10
For Vehicles Without TV Tuner
*11
Sportback
*12
From July 2020
