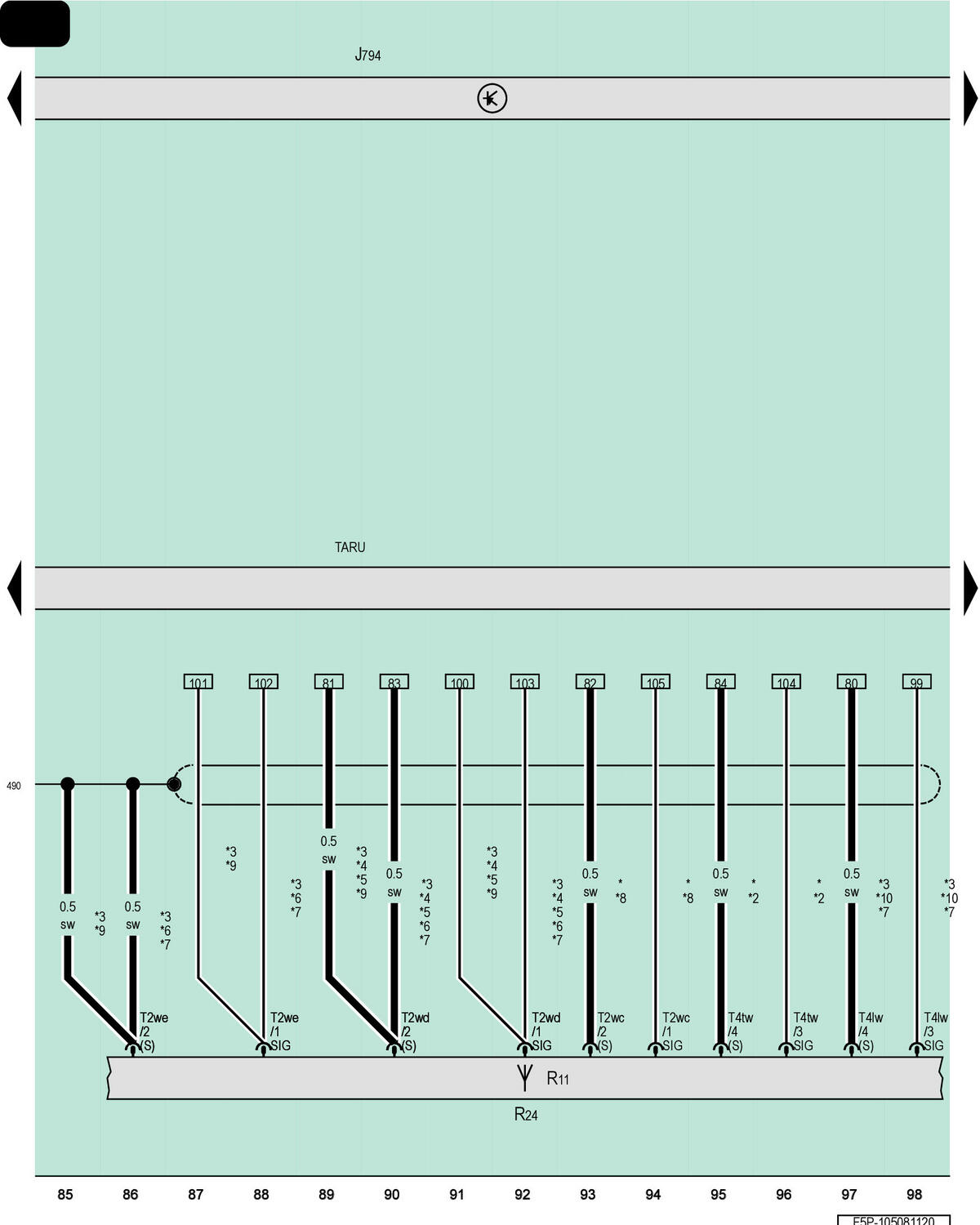

Information Electronics Control Module 1, Antenna Amplifier
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
T2wc
2-Pin Connector, Pink
T2wd
2-Pin Connector, Green
T2we
2-Pin Connector, White
T4lw
4-Pin Connector, Gray, Yellow
T4tw
4-Pin Connector, Pink, White
TARU
Coupling Point on Right A-Pillar, Bottom
490
Shielding 2 Ground Connection (in Radio Navigation System Wiring Harness)
*
For Vehicles with Japan Equipment
*2
For Vehicles with TV Tuner
*3
For Vehicles Without Japan Equipment
*4
Not for USA
*5
For Vehicles with Digital Radio
*6
Through July 2020
*7
Coupe
*8
For Vehicles Without TV Tuner
*9
Sportback
*10
From July 2020
