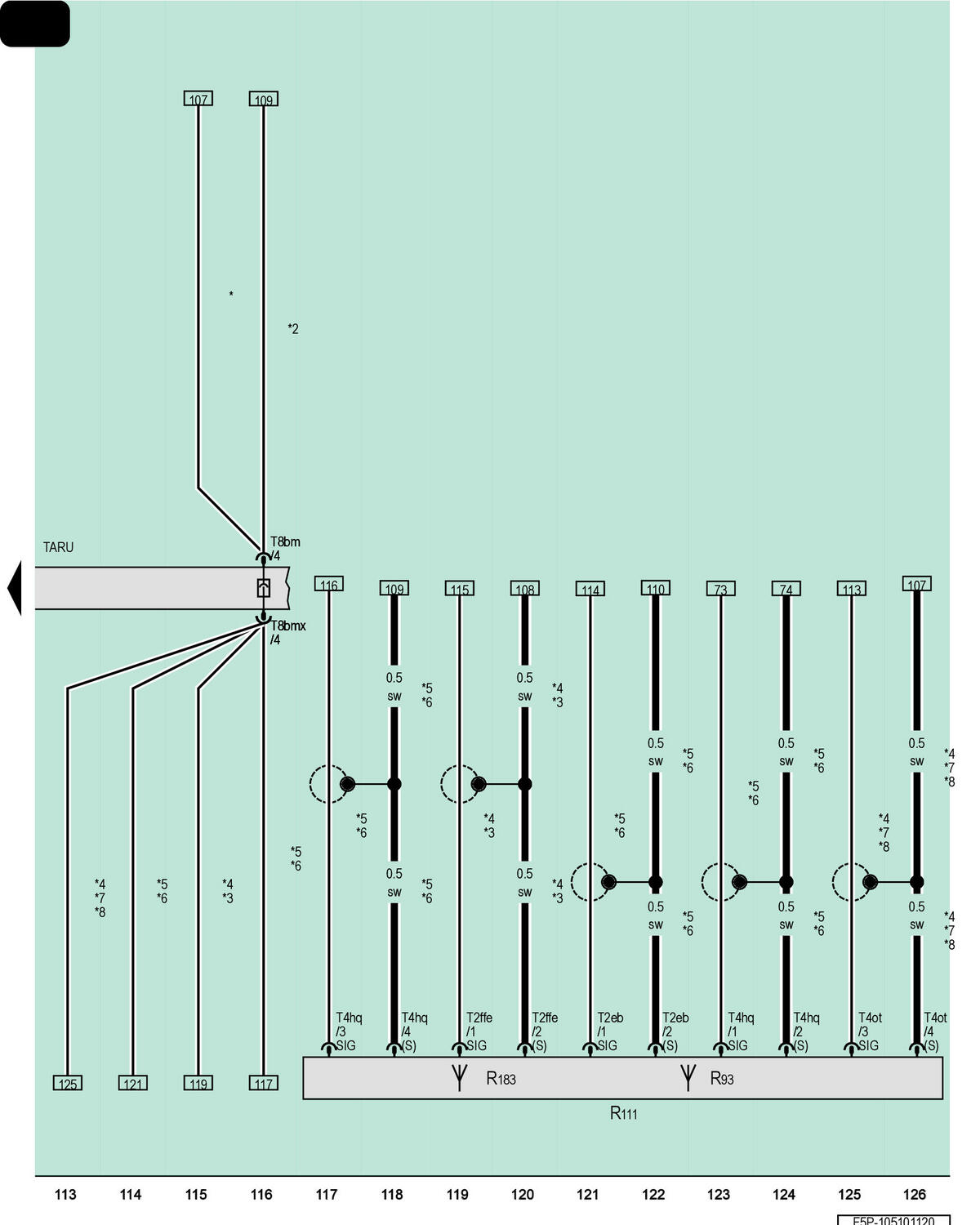

Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

R93

Radio Antenna 2

R111

Antenna Amplifier 2

R183

Digital Radio Antenna

T2eb

2-Pin Connector, Light Brown

T2ffe

2-Pin Connector, Blue

T4hq

4-Pin Connector, Light Brown

T4ot

4-Pin Connector, Brown

T8bm

8-Pin Connector, White

T8bmx

8-Pin Connector, White

TARU

Coupling Point on Right A-Pillar, Bottom

*

Not for USA

*2

For USA Only

*3

For Vehicles Without Digital Radio

*4

For Vehicles with Japan Equipment

*5

For Vehicles Without Japan Equipment

*6

For Vehicles with Digital Radio

*7

Coupe

*8

From July 2020
