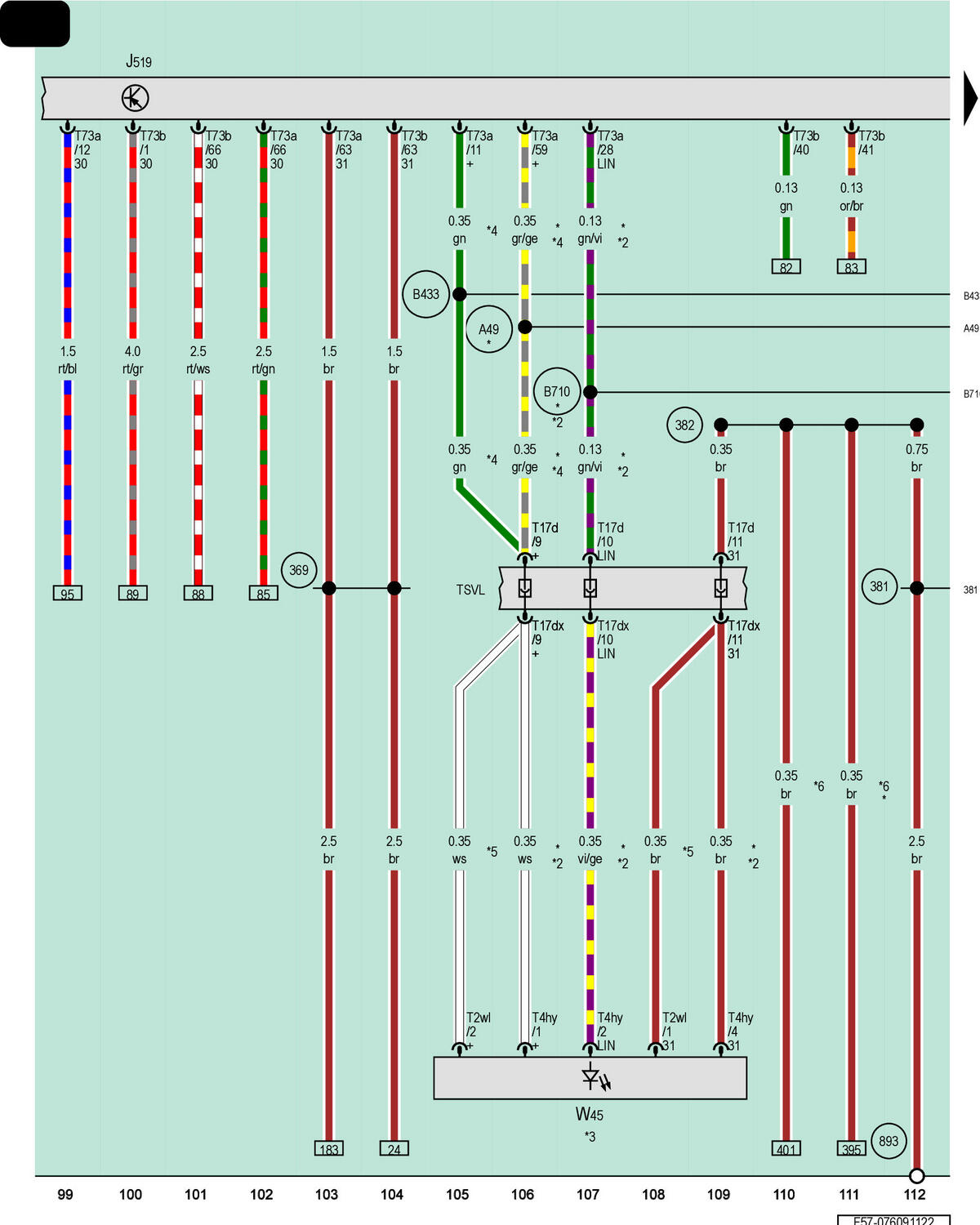

Vehicle Electrical System Control Module, Left Rear FOOTWELL Lamp
J519
Vehicle Electrical System Control Module
T2wl
2-Pin Connector, Brown
T4hy
4-Pin Connector, Brown
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
W45
Left Rear Footwell Lamp
369
Ground Connection 4 (in Main Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
A49
Connection 1 (in Instrument Panel Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
Optional Equipment
*2
Through September 2019
*3
For Vehicles with Auxiliary Lamps
*4
Diameter Depends on Equipment
*5
Depending on Equipment
