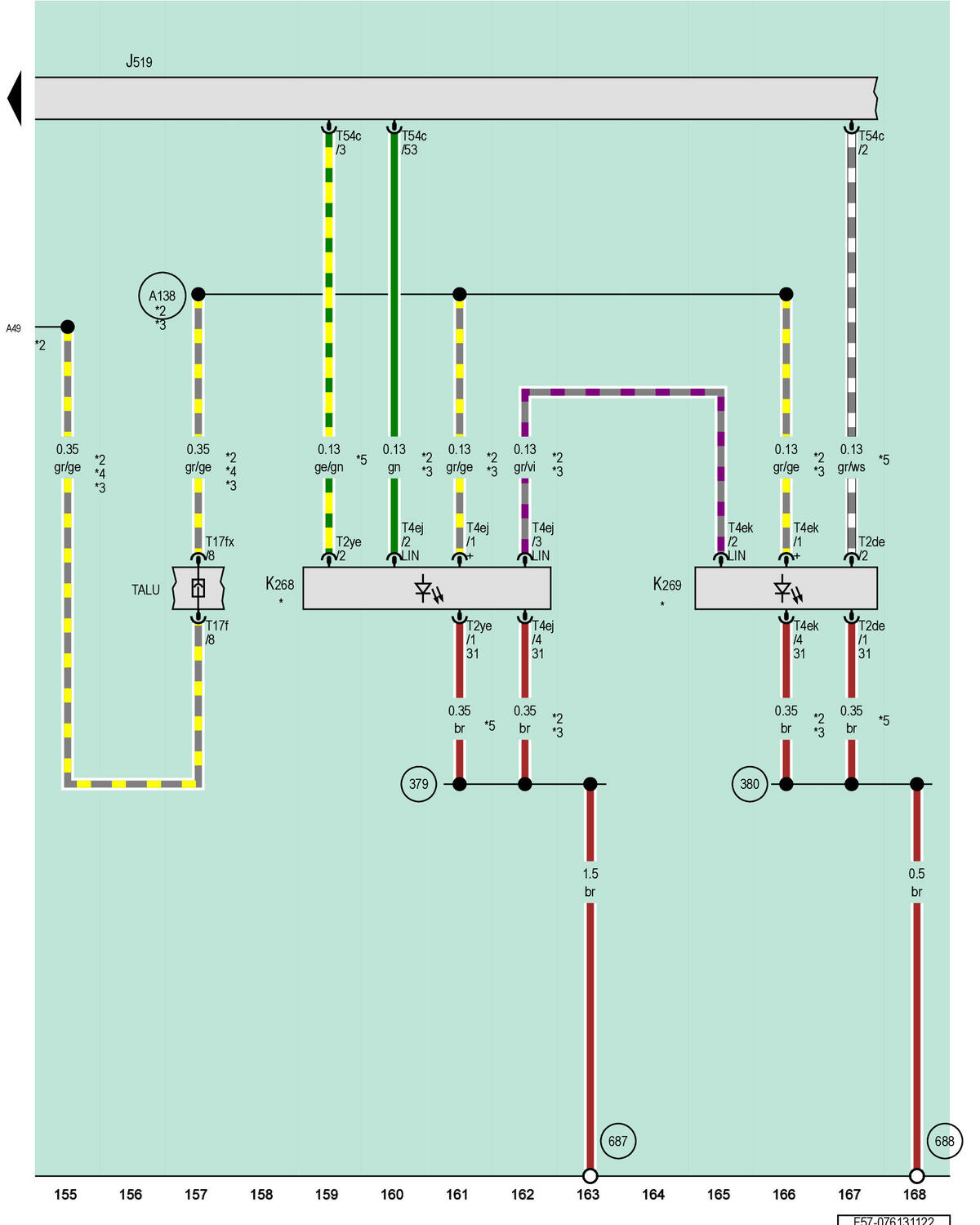

Vehicle Electrical System Control Module, Left Front FOOTWELL Lamp, Right Front FOOTWELL Lamp
J519
Vehicle Electrical System Control Module
K268
Left Front Footwell Lamp
K269
Right Front Footwell Lamp
T2de
2-Pin Connector, Black
T2ye
2-Pin Connector, White, Different Connector Color Possible
T4ej
4-Pin Connector, Black
T4ek
4-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T54c
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
379
Ground Connection 14 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
688
Ground Connection 2 on Center Tunnel
A49
Connection 1 (in Instrument Panel Wiring Harness)
A138
Connection 2 (in Instrument Panel Wiring Harness)
*
For Vehicles with Auxiliary Lamps
*2
Optional Equipment
*3
Through September 2019
*4
Diameter Depends on Equipment
*5
Depending on Equipment
