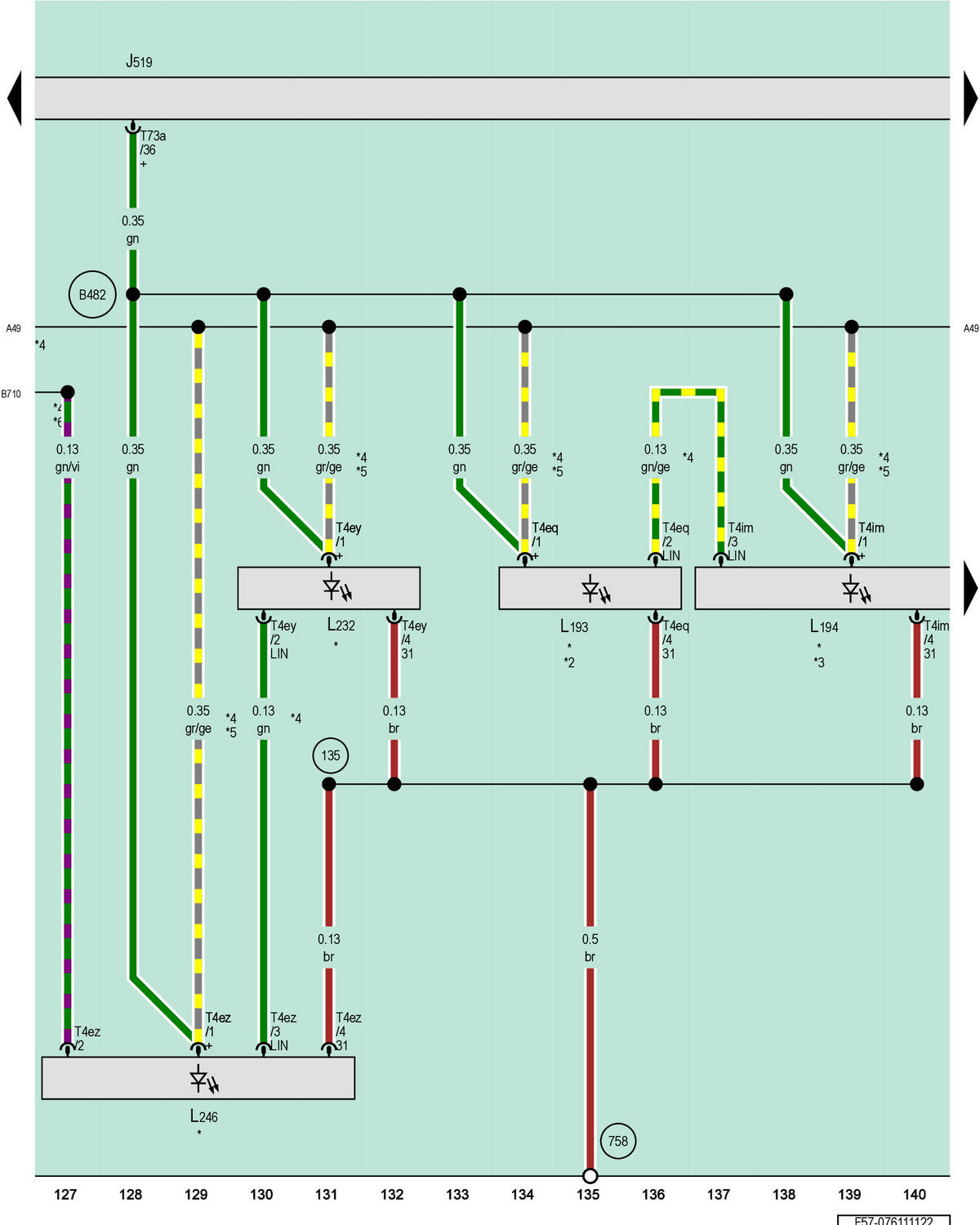

Vehicle Electrical System Control Module, Front Center Console Ambient Lighting Bulb 1, Front Center Console Ambient Lighting Bulb 2
J519
Vehicle Electrical System Control Module
L193
Front Center Console Ambient Lighting Bulb 1
L194
Front Center Console Ambient Lighting Bulb 2
T4eq
4-Pin Connector, Black
T4im
4-Pin Connector, Black
T73a
73-Pin Connector, Black
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
A49
Connection 1 (in Instrument Panel Wiring Harness)
B482
Connection 18 (in Main Wiring Harness)
B711
LIN Bus Connection 6 (in Main Wiring Harness)
*
For Vehicles with Auxiliary Lamps
*2
Left
*3
Right
*4
Diameter Depends on Equipment
*5
Optional Equipment
