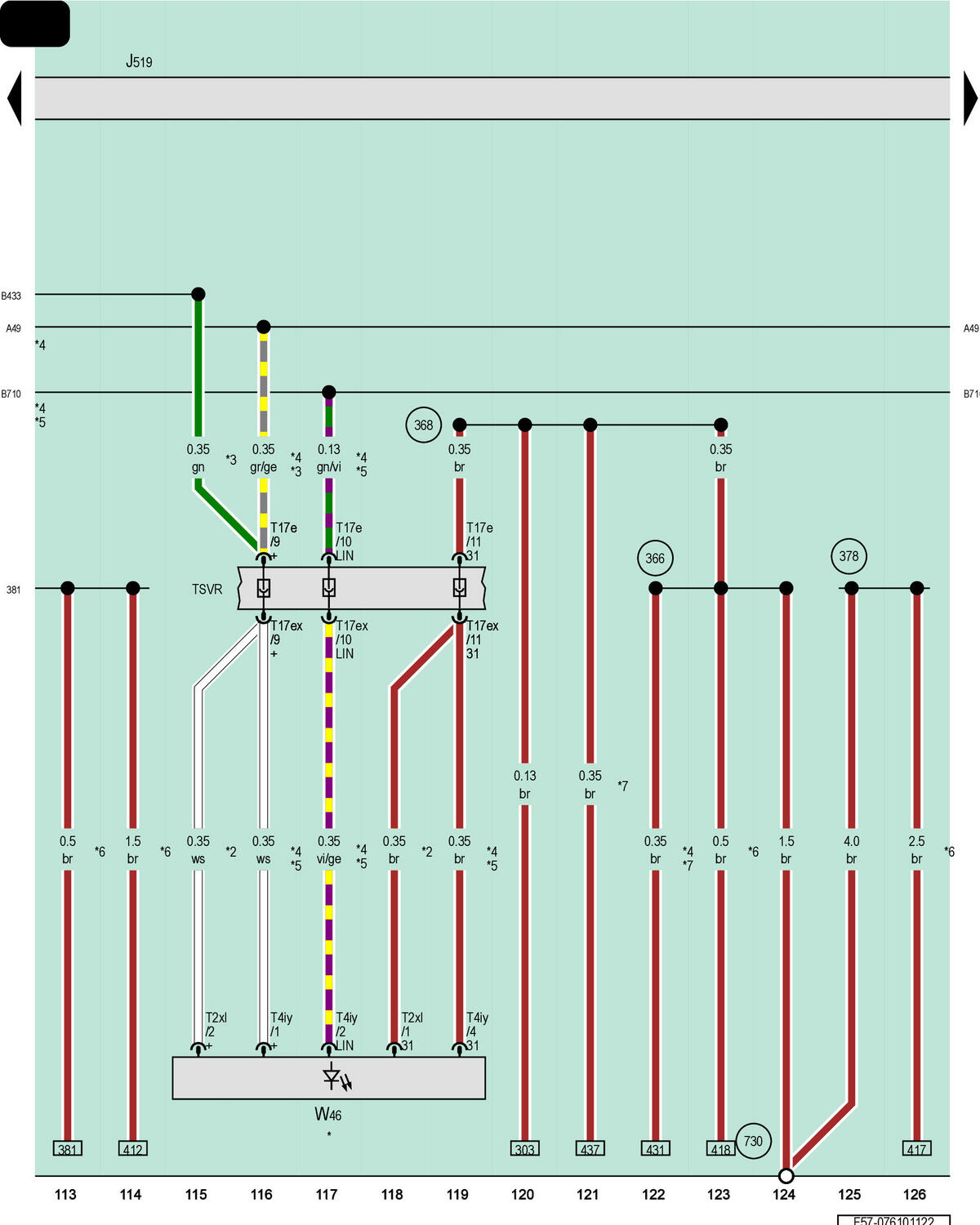

Vehicle Electrical System Control Module, CUPHOLDER Ambient Lighting Lamp, CUPHOLDER Ambient Lighting Lamp 2, Right Rear FOOTWELL Lamp
J519
Vehicle Electrical System Control Module
L232
Cupholder Ambient Lighting Lamp
L246
Cupholder Ambient Lighting Lamp 2
T2xl
2-Pin Connector, Brown
T4ey
4-Pin Connector, Black
T4ez
4-Pin Connector, Black
T4iy
4-Pin Connector, Black
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
T73a
73-Pin Connector, Black
TSVR
Right Front Seat Coupling Station
W46
Right Rear Footwell Lamp
135
Ground Connection 2 (in Instrument Panel Wiring Harness)
366
Ground Connection 1 (in Main Wiring Harness)
368
Ground Connection 3 (in Main Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
758
Ground Connection 3 on Center Tunnel
A49
Connection 1 (in Instrument Panel Wiring Harness)
B482
Connection 18 (in Main Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
For Vehicles with Auxiliary Lamps
*2
Depending on Equipment
*3
Diameter Depends on Equipment
*4
Optional Equipment
*5
Through September 2019
