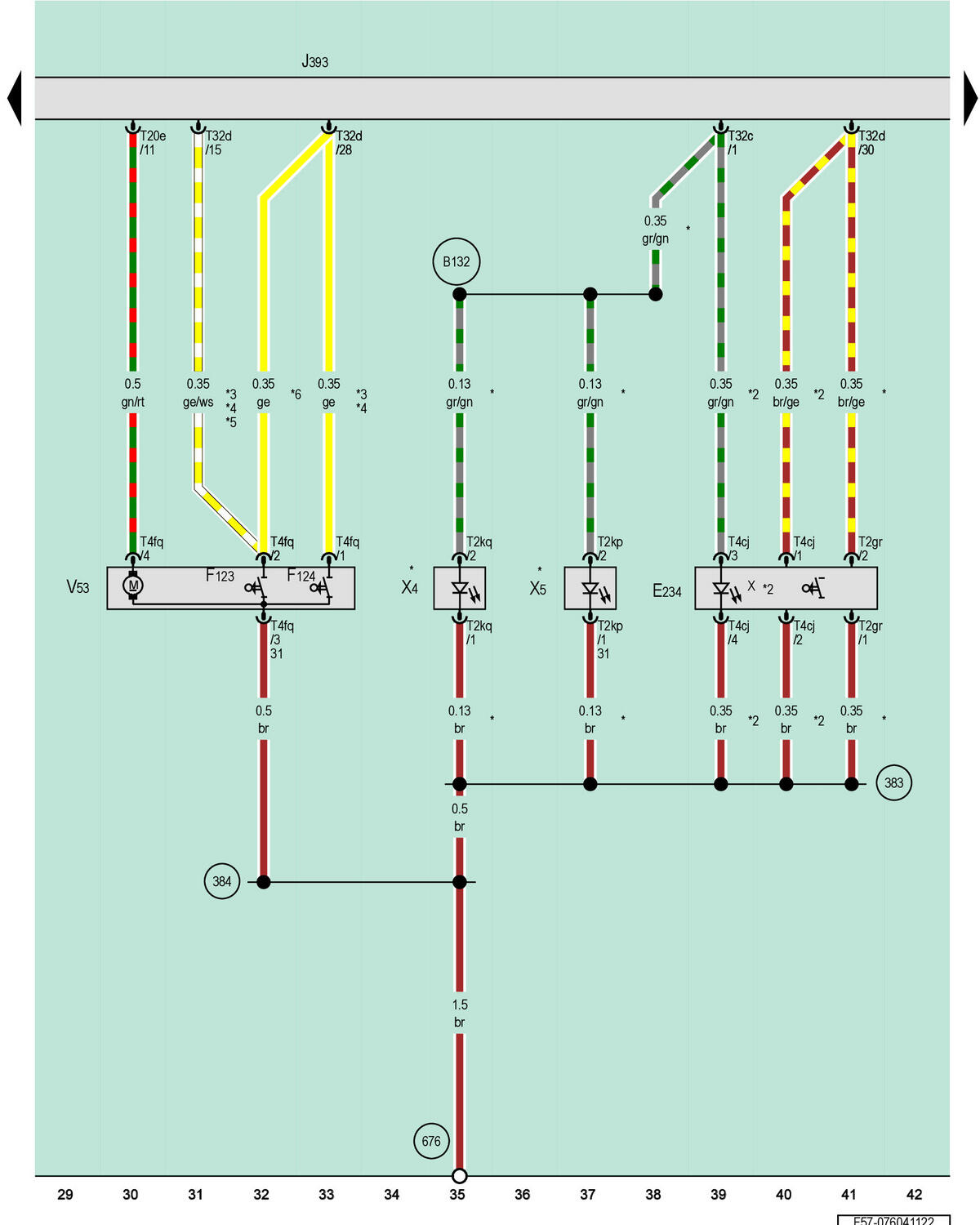

Release Button In Rear Lid Handle, Comfort System Central Control Module, Rear Lid Central Locking System Motor, Left License Plate Lamp, Right License Plate Lamp
F234
Release Button in Rear Lid Handle
F123
Rear Lid Alarm Switch
F124
Rear Lid Lock Cylinder/Anti-Theft Alarm/Central Locking Contact Switch
H12
Alarm Horn
J393
Comfort System Central Control Module, Behind the Left Luggage Compartment Side Trim
T2gr
2-Pin Connector, Black
T2kp
2-Pin Connector, Black
T2kq
2-Pin Connector, Black
T3bl
3-Pin Connector, Black
T4fq
4-Pin Connector, Black
T20e
20-Pin Connector, Black
T32c
32-Pin Connector, Black
T32d
32-Pin Connector, Blue
V53
Rear Lid Central Locking System Motor
X4
Left License Plate Lamp
X5
Right License Plate Lamp
383
Ground Connection 18 (in Main Wiring Harness)
384
Ground Connection 19 (in Main Wiring Harness)
385
Ground Connection 20 (in Main Wiring Harness)
608
Ground Connection in Plenum Chamber, Center
676
Ground Connection 2 in Luggage Compartment, Left
B132
License Plate Lamp Connection (in Interior Wiring Harness)
*
For Vehicles with Power Rear Lid Opening
*2
For Vehicles with Rear Lid Closing Aid
*3
For Vehicles Without Power Rear Lid Opening
