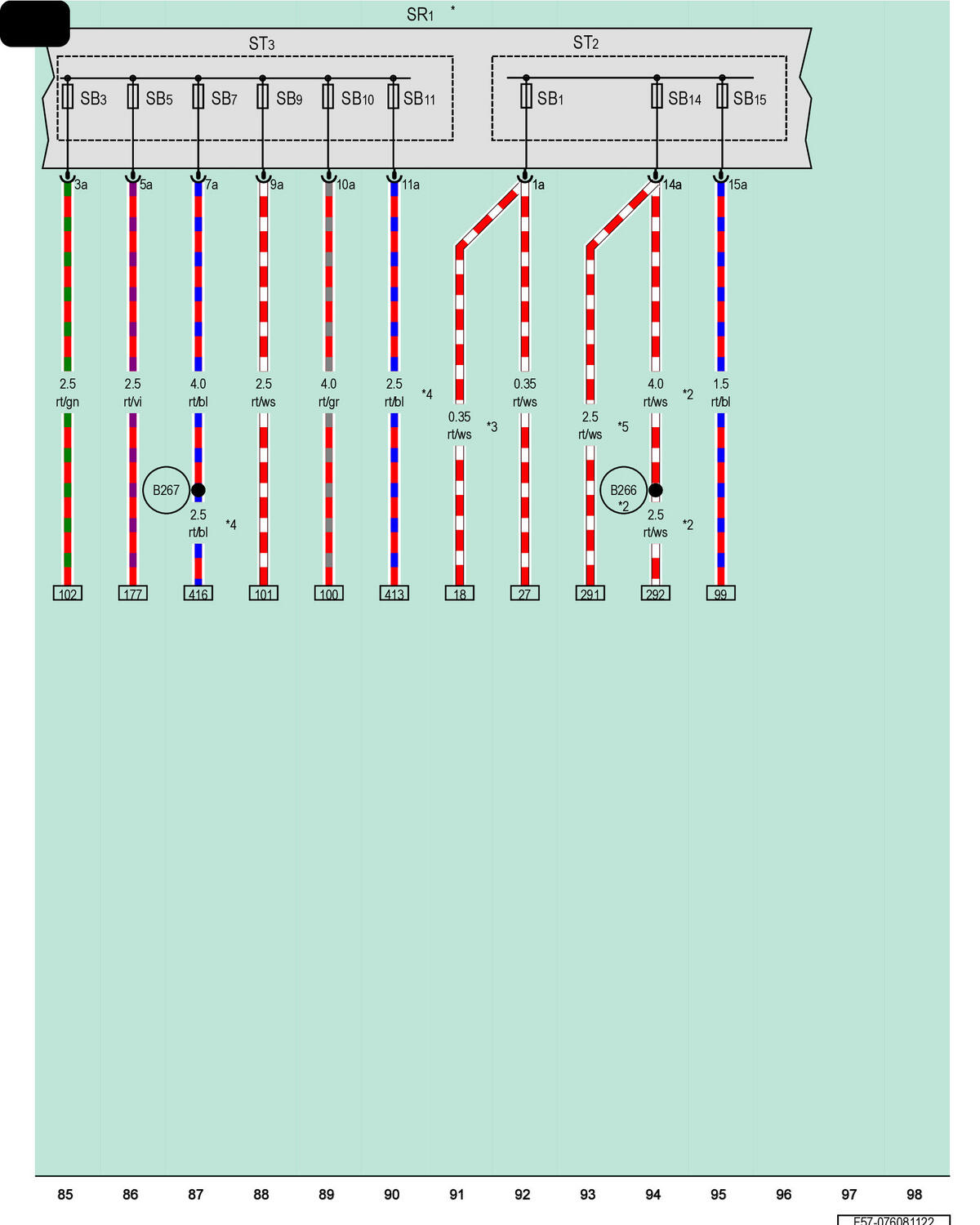

Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

SR1

Relay and Fuse Panel 1, On the Lower Left A-Pillar

SB1

Fuse 1 (On Fuse Panel B)

ST2

Fuse Panel 2, Red

ST3

Fuse Panel 3, Black

SB3

Fuse 3 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

SB7

Fuse 7 (On Fuse Panel B)

SB9

Fuse 9 (On Fuse Panel B)

SB10

Fuse 10 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

SB14

Fuse 14 (On Fuse Panel B)

SB15

Fuse 15 (On Fuse Panel B)

B266

Door Control Module Positive Connection 1 (30a) (in Interior Wiring Harness)

B267

Door Control Module Positive Connection 2 (30a) (in Interior Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Anti-Theft Alarm System with Interior Monitoring

Omitted as a Running Change

Running Change
