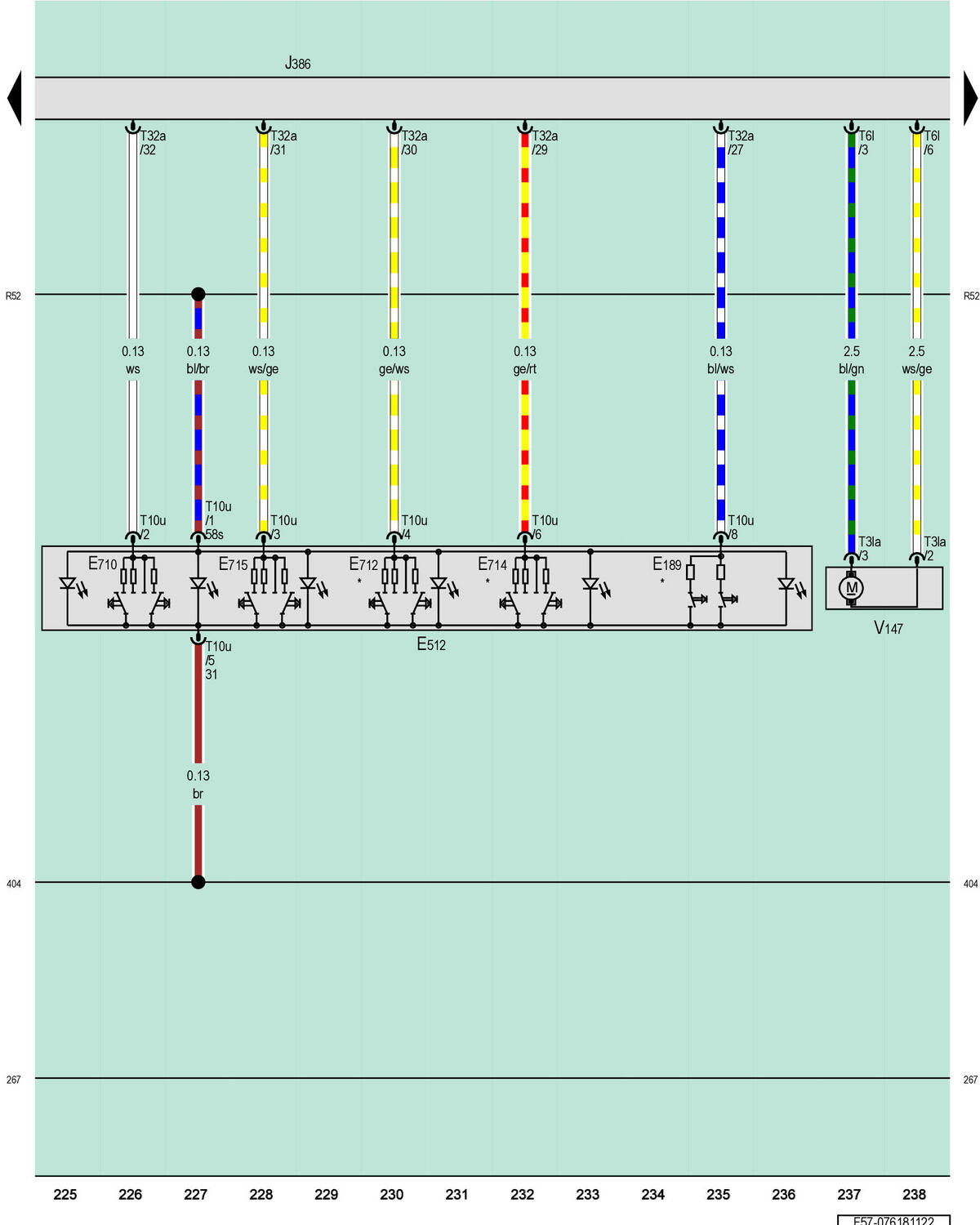

Power Window Control Head In Driver Door, Driver Door Control Module, Driver Window Regulator Motor

Courtesy of AUDI OF AMERICA, LLC

E189

Central Window Regulator Switch in Driver Door

E512

Power Window Control Head in Driver Door

E710

Driver Power Window Button

E712

Driver Side Rear Power Window Button in Driver Door

E714

Passenger Side Rear Power Window Button in Driver Door

E715

Front Passenger Power Window Button in Driver Door

J386

Driver Door Control Module

T3la

3-Pin Connector, Blue

T6l

6-Pin Connector, Black

T10u

10-Pin Connector, Black

T32a

32-Pin Connector, Blue

V147

Driver Window Regulator Motor

267

Ground Connection 2 (in Driver Door Wiring Harness)

404

Ground Connection 4 (in Driver Door Wiring Harness)

R52

Connection 58S (in Driver Door Wiring Harness)

*

For Convertible
