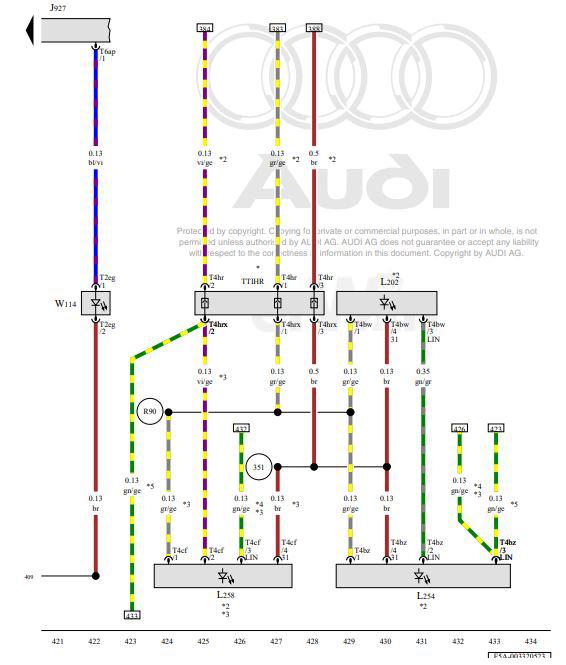

Passenger Side Rear Door Control Module, Right Rear Door Ambient Lighting Bulb 1, Right Rear Door Contour Illumination Lamp, Right Rear Door Storage Compartment Illumination Lamp, Passenger Side Rear Exit Warning Lamp

Courtesy of AUDI OF AMERICA, LLC

J927

Passenger Side Rear Door Control Module

L202

Right Rear Door Ambient Lighting Bulb 1

L254

Right Rear Door Contour Illumination Lamp

L258

Right Rear Door Storage Compartment Illumination Lamp

T2eg

2-Pin Connector, Black

T4bw

4-Pin Connector, Black

T4bz

4-Pin Connector, Black

T4cf

4-Pin Connector, Red

T4hr

4-Pin Connector, Black

T4hrx

4-Pin Connector, Black

T6ap

6-Pin Connector, Brown

TTIHR

Passenger Side Rear Exit Warning Lamp

351

Ground Connection 2 (in Right Rear Door Wiring Harness)

409

Ground Connection 3 (in Right Rear Door Wiring Harness)

R90

Connection 1 (in Right Rear Door Wiring Harness)

*

Optional Equipment

*2

For Vehicles with Auxiliary Lamp

*3

Through September 2019

*4

Different Wire Color Possible

*5

From October 2019
