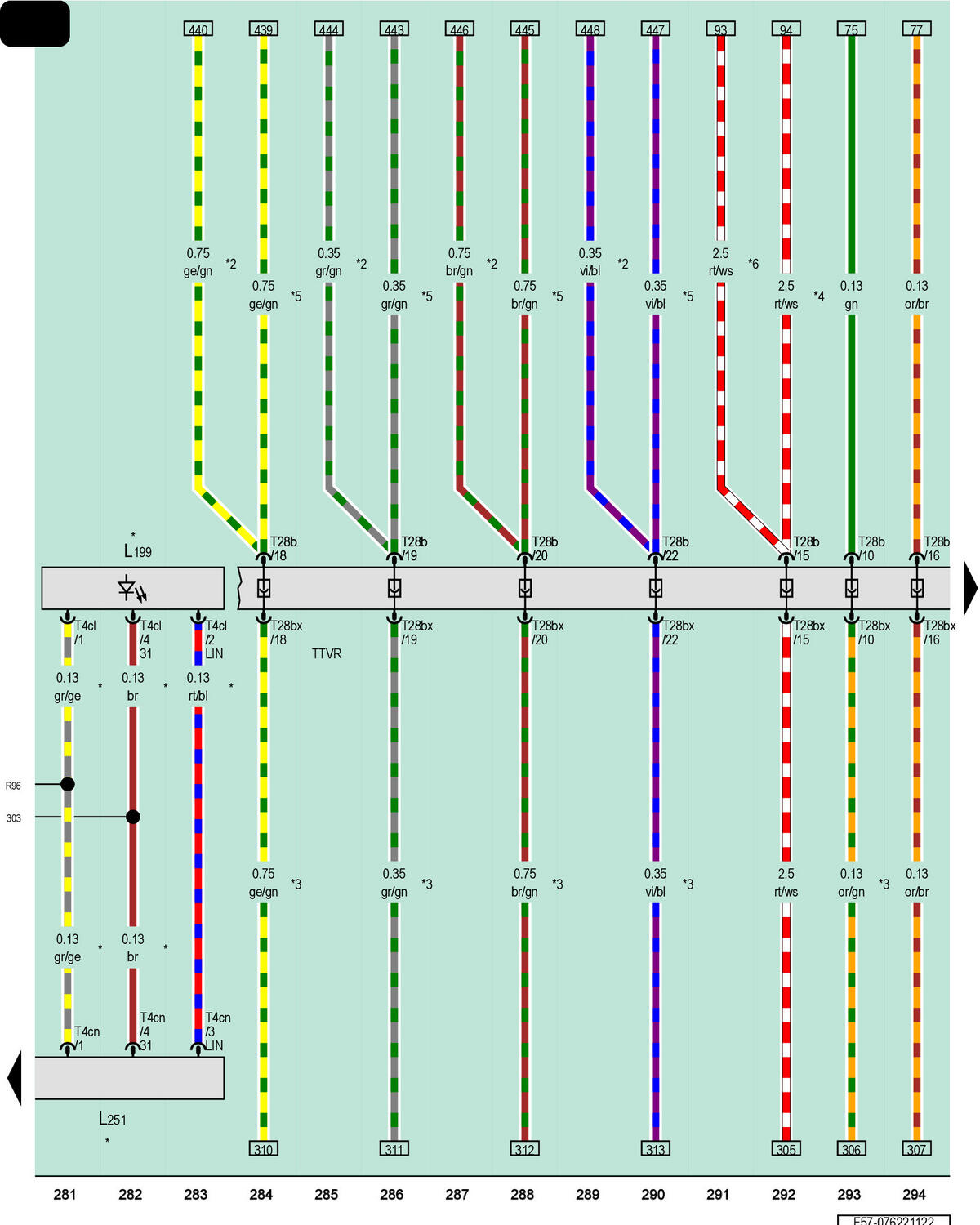

Left Front Door Ambient Lighting Bulb 1, Left Front Door Contour Illumination Lamp, Front Passenger Side Sill Panel Strip Ambient Lighting Lamp
L199
Left Front Door Ambient Lighting Bulb 1
L251
Left Front Door Contour Illumination Lamp
T4cl
4-Pin Connector, Brown
T4cn
4-Pin Connector, Red
T28b
28-Pin Connector, Black
T28bx
28-Pin Connector, Black
TTVR
Right Front Door Coupling Point
303
Ground Connection 3 (in Driver Door Wiring Harness)
R96
Connection 3 (in Driver Door Wiring Harness)
*
For Vehicles with Auxiliary Lamps
*2
Pre-Wired Component
*3
Optional Equipment
*4
For Vehicles with Keyless Access Authorization
*5
Different Wire Color Possible
*6
Diameter Depends on Equipment
