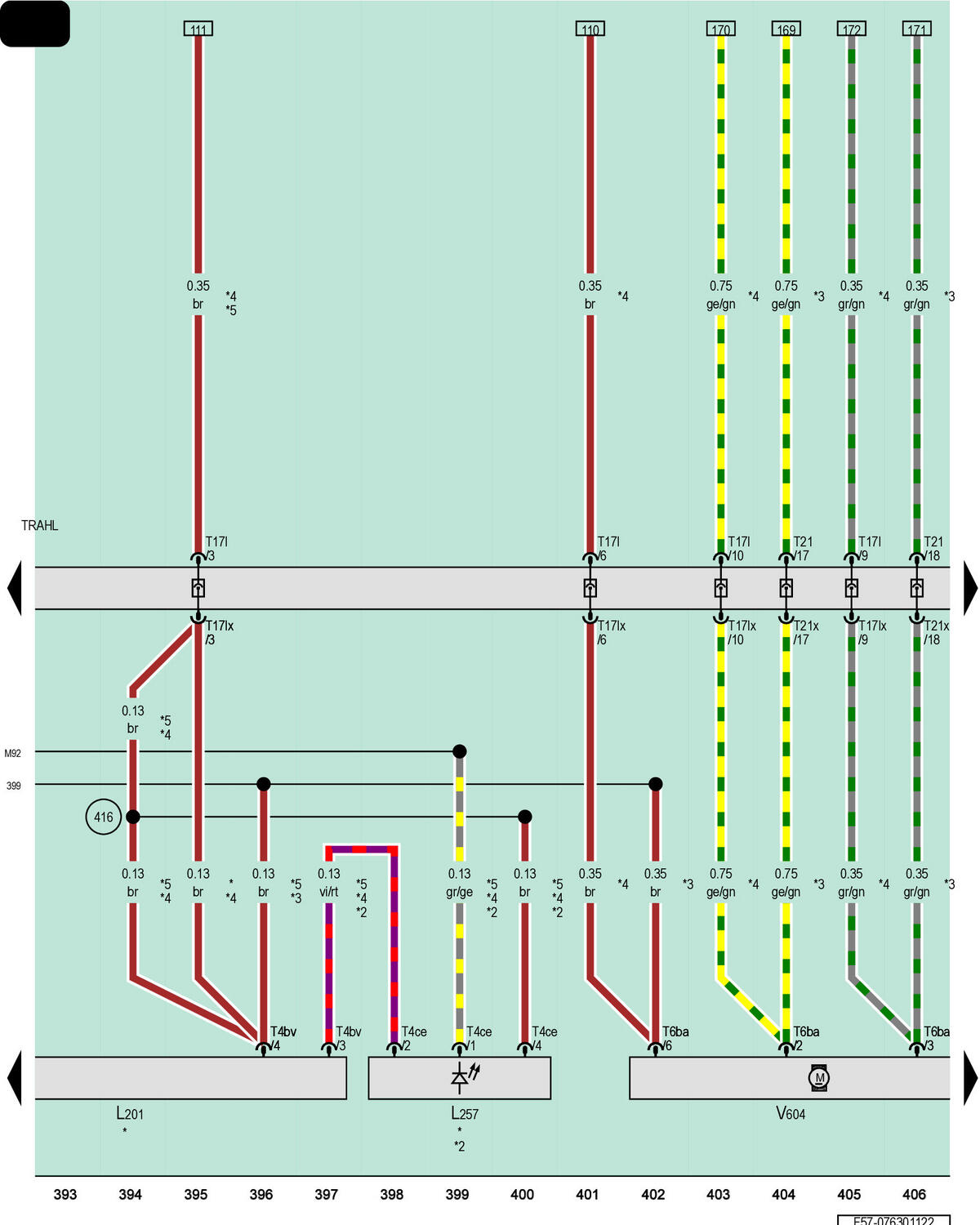

Driver Side Rear Door Control Module, Driver Side Rear Door Lock Unit, Driver Side Rear Window Regulator Motor

Courtesy of AUDI OF AMERICA, LLC

F505

Driver Side Rear Door Contact Switch

F509

Driver Side Rear Central Locking System Actuator

F583

Driver Side Rear Child Safety Lock Contact Switch

J926

Driver Side Rear Door Control Module

T3br

3-Pin Connector, Black

T6b

6-Pin Connector, Black

T6hl

6-Pin Connector, Black

T8b

8-Pin Connector, Black

T20hl

20-Pin Connector, White

VX83

Driver Side Rear Door Lock Unit

V471

Driver Side Rear Window Regulator Motor

V535

Driver Seat Rear Child Safety Lock Motor

V537

Driver Seat Rear Door Central Locking -Safe- Motor

V539

Driver Seat Rear Central Locking System Motor

207

Ground Connection (in Left Rear Door Wiring Harness)

For Vehicles with Child Safety Lock

For Vehicle Without Child Safety Lock
