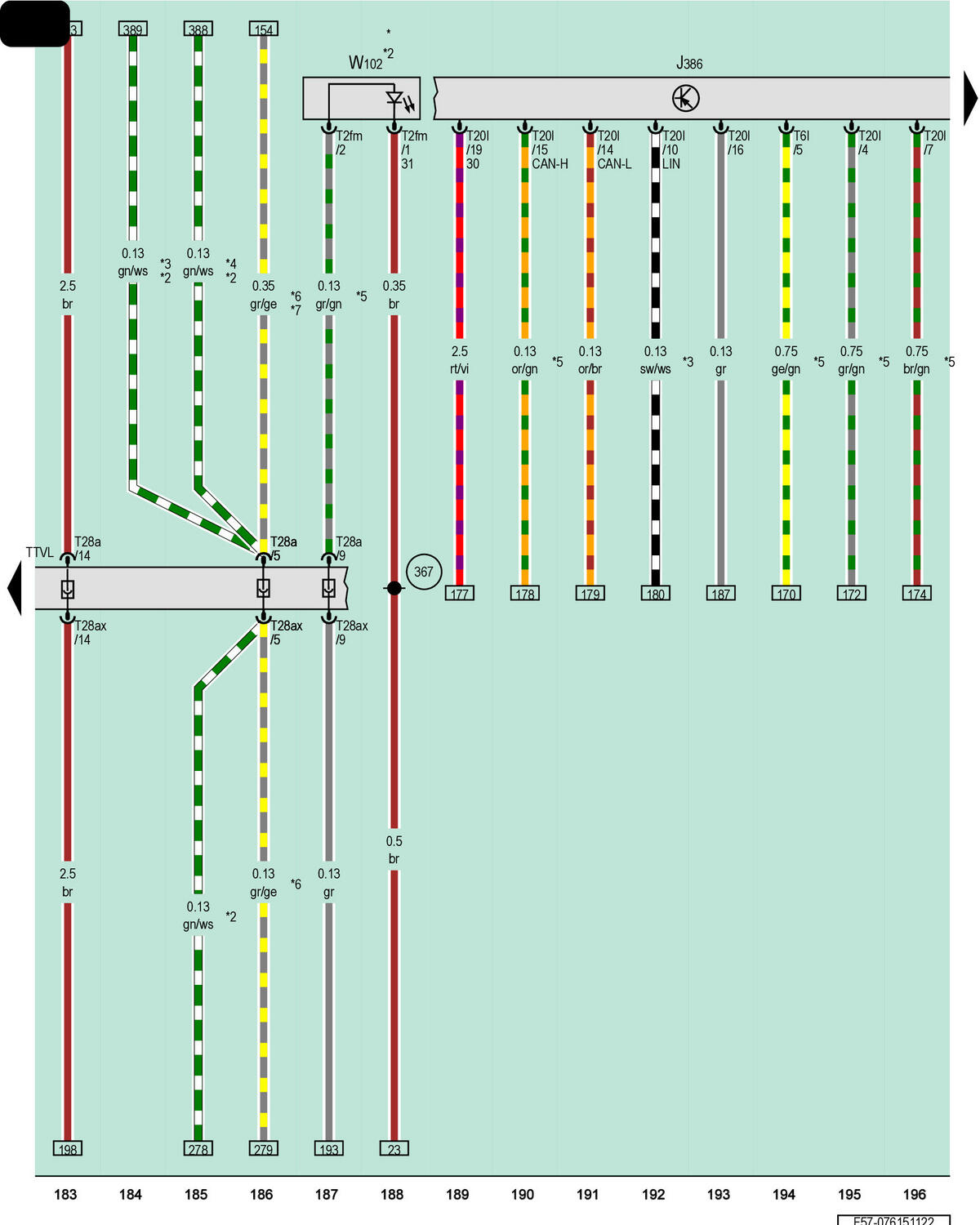

Driver Door Control Module, Left Front Door Coupling Point, Driver Side Sill Panel Strip Ambient Lighting Lamp

Courtesy of AUDI OF AMERICA, LLC

J386

Driver Door Control Module

T2fm

2-Pin Connector, Black

T20l

20-Pin Connector, White

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

TTVL

Left Front Door Coupling Point

W102

Driver Side Sill Panel Strip Ambient Lighting Lamp

367

Ground Connection 2 (in Main Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with Auxiliary Lamps

*3

Optional Equipment

*4

For Vehicles with Keyless Access Authorization

*5

Different Wire Color Possible

*6

Diameter Depends on Equipment
