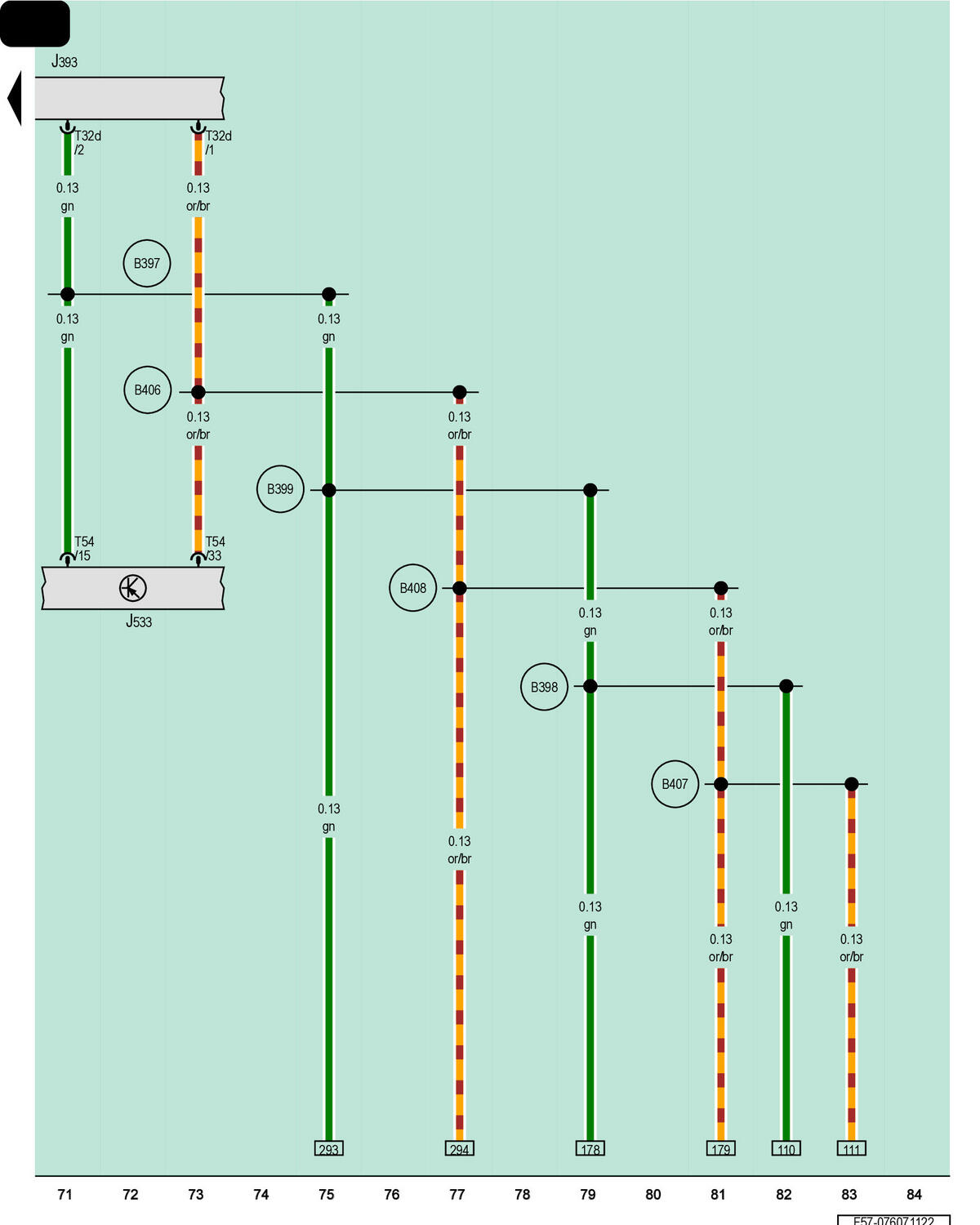

Comfort System Central Control Module
J393
Comfort System Central Control Module, Behind the Left Luggage Compartment Side Trim
J533
Data Bus on Board Diagnostic Interface
T32d
32-Pin Connector, Blue
T54
54-Pin Connector, Black
B397
Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B406
Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
*
Diameter Depends on Equipment
