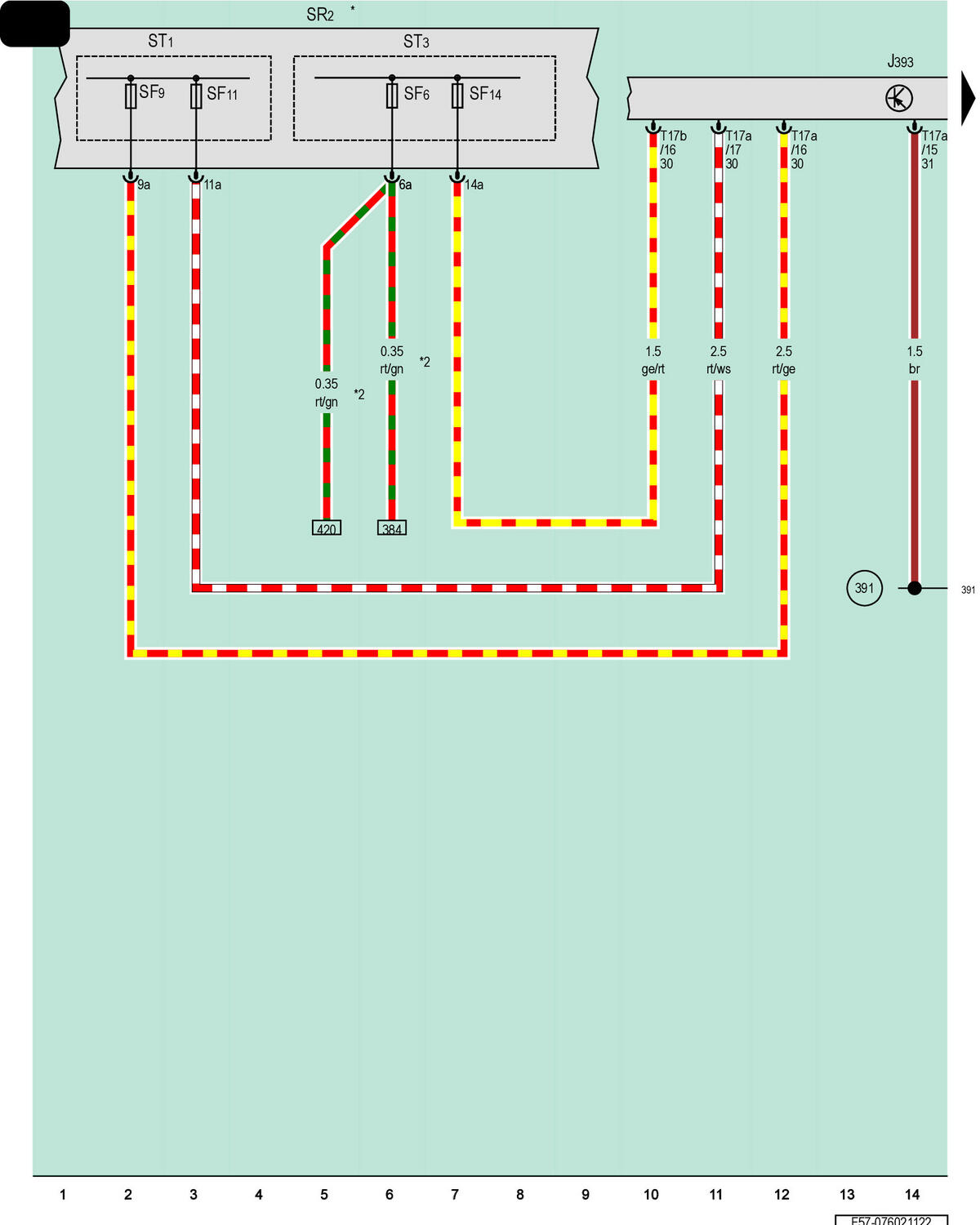

Comfort System Central Control Module, Relay And Fuse Panel 2
J393
Comfort System Central Control Module, Behind the Left Luggage Compartment Side Trim
ST1
Fuse Panel 1, Black
SR2
Relay and Fuse Panel 2, Behind the Left Luggage Compartment Side Trim
ST3
Fuse Panel 3, Brown
SF9
Fuse 9 (On Fuse Panel F)
SF11
Fuse 11 (On Fuse Panel F)
SF14
Fuse 14 (On Fuse Panel F)
T17a
17-Pin Connector, Brown
T17b
17-Pin Connector, Black
T20e
20-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
391
Ground Connection 26 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Diameter Depends on Equipment
*3
For Vehicles with Keyless Access Authorization
*4
Different Wire Color Possible
