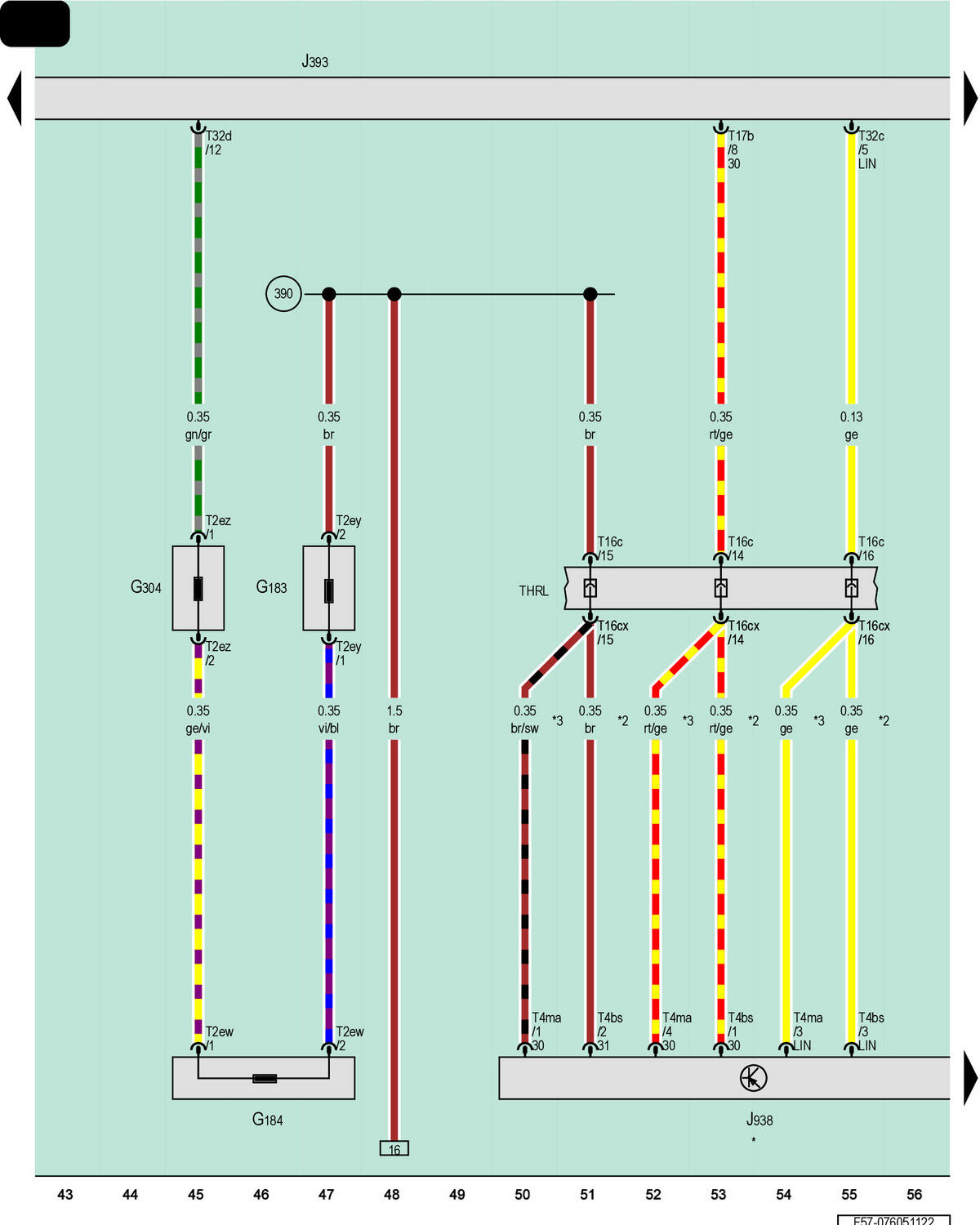

Comfort System Central Control Module, Power Rear Lid Opening Control Module

Courtesy of AUDI OF AMERICA, LLC

G183

Left Rear Window Breakage Sensor

G184

Right Rear Window Breakage Sensor

G304

Rear Window Breakage Sensor

J393

Comfort System Central Control Module, Behind the Left Luggage Compartment Side Trim

J938

Power Rear Lid Opening Control Module

T2ew

2-Pin Connector, Black

T2ey

2-Pin Connector, Black

T2ez

2-Pin Connector, Black

T4bs

4-Pin Connector, Black

T4ma

4-Pin Connector, Black

T16c

16-Pin Connector, Brown

T16cx

16-Pin Connector, Brown

T17b

17-Pin Connector, Black

T20e

20-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

THRL

Coupling Point in Luggage Compartment, Left

390

Ground Connection 25 (in Main Wiring Harness)

*

Depending on Equipment

*2

For Vehicles with Keyless Access Authorization

*3

Diameter Depends on Equipment

*4

Different Wire Color Possible

*5

Through September 2019

*6

From October 2019

*7

Optional Equipment
